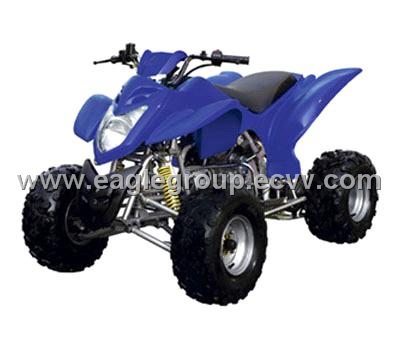

149cc ATV/Quad(YG-ATV150-B)

Engine type: 1-cylinder 4-strock ,air-cooled
Engine displacement:149cc
Max Power: 8.8KW/ 8500 r/min
Max Torque (r/min): 10.0Nm/6500r/min
Compression Ratio:9.2:1
Lubrication:Pressure and Splash
Carburetor:PZ27
Ignition:CDI
Starting:Electric
Drive: chain ,2WD
Max speed:55kms/h
Transmission:5-speed manual clutch with reverse
Front suspension: Double A-ARM
Rear suspension: Swing ARM
Front brake:Dual hydraulic discs
Rear brake:Hydraulic discs
Parking brake:Rear wheel
Front Tire:180／80-8 (On road if EEC)
Rear Tire:255 / 65-8 (On road if EEC)
Length:1600mm/63.0in
Width:1000mm/39.4 in
Height:1060mm/41.7in
SEAT HEIGHT :720mm/28.3in
Wheel Base:1100mm/43.3in
Ground Clearance:130mm/5.1in
WEIGHT :160kg/352Ibs
Fuel capacity:7.0L/1.85US gal
Max Speed:65kms/h
Light: EEC standard
Conveyance:

Qty/20'GP:18pcs
