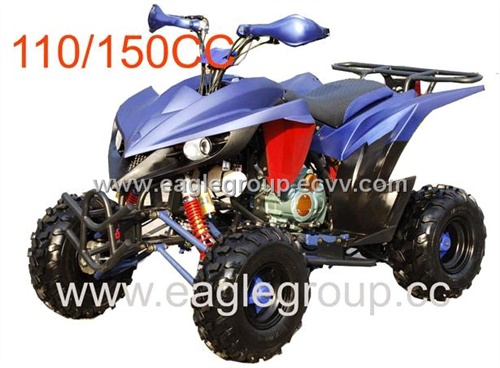

150cc ATV/Quad(YG-ATV150ST-5)

Engine: 200CC/150CC, single cylinder, 4-stroke, air/water-cooled, 4 speeds and reverse
Manual clutch
Bore x stroke (mm): 63.5 x 62.2
Max Power (kW/rpm): 10.5/7500
Battery: 12V, 9Ah
Ignition type: CDI
Start way: Electric start
Brake(front/rear): drum/disc brake
Wheelbase: 1140mm
Distance between wheel: Front: 930m, Rear : 770mm
Drive: chain drive
Minimum Ground Clearance: 100mm
Max. torque (N.m/rpm):13/6000-6500
Front tire: AT 19 x 7-8
Rear tire: AT 18 x 9.50-8
N.W.:162kg
G.W.: 172kg
Oversize:1792*1080*1180mm
Carton size: 1650*1160*840mm
Max. load capacity: 120kg
Qty/40' HQ: 42PC
