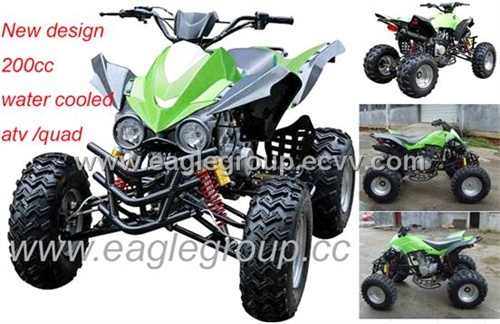

200cc Water-cooled ATV/Quad(YG-200ST-2)

 Products size : 1680mm×1115mm×1170mm

 Clutch : manual clutch

 Dry weight : 181KG

 Loading weright : 160kg

 Max speed : >= 83 km/h

 Max turning angle : 28 degree

 Front/Rear brake: Dual hydraulic /Hydraulic disc , the front brake is separated with  the rear brake

 Wheel rim : steel

 Final drive : Chain

 Front/ Rear suspension: Dual A-arm/Swing arm , both front and rear are air big  shock

 Front/Rear tire : 23×7-10/22×10-10

 Tire : Front : 24*8-12 Rear : 24*9-11

 Front suspension : independent hydraulic suspension

 Productsize : 2060*1210*1230mm

 Carton size : 2200*1170*880mm,

 Gross /Net weight : 306/260kg

 Engine : ZONGSENG 250 CC ,Cylinder, 4-stroke, Water -cooled

 low gas consuming : 3.5L/100km

 Lubrication oil : SE15W/40

 Spark plug : D8RTC

 Transmission : 4- speed + reverse , not circle . （CVT is possible ）

 Max power (Kw/min): 11.5Kw/7500 r/min

 Max torque (Nm/min): 17.5N.m/6000r/ min

 Displacement: 250cc ( optional : 200cc)

 Bore*stroke (mm*mm): 67*65mm

 Compression ratio: 9.2:1

 Ignition: C.D.I Starting: Electric

 Lubrication: Pressure & Spray

 Parking brake: Rear wheel

 L*W*H (mm/in): 1600*1050*1120

 Battery : 12V-9AH

 Carburetor size ; PZ30

 Fuel capacity (liter/gallons): 5.5/1.36

 front light: 12V35W/35

 Quantity of 40HQ: 63 pcs

 Optional : Camouflage color + 15 USD

 Meter : + 16USD

 Viewfinder + 5USD
