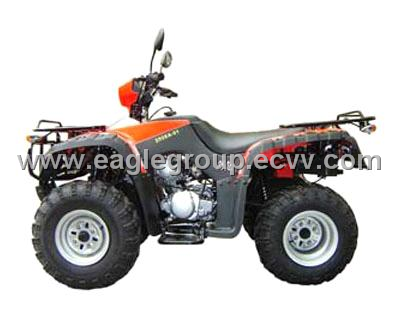

250cc Quad(YG250E-A1)

Specifications
Engine Type :4 stroke,air-cooled, 5-speed semi-automatic; fully auto
Cylinder Arrangement :Vetical Single
Cylinder Dia X work stroke :71x58mm
Final Drive :shaft drive
Bore x Stroke(mm) :15N.m(6000r/min)
Piston Displacement(cc) :229.6ml
Compression Ratio :8.7:1
Maximum Power(kw/r/min) :10.5/6000-7050
Max Torque(N.m/r/min): 16/5500-6500
Starter Sytem :electric
Lubricaiton: Pressure
Trasmission: 5-speed semi-automatic with reverse
Overall LxWxH(mm) :2270x1610x1533
Packing Dimension LxWxH(mm) :1940x1050x1160
Wheel Base(mm) :1160
Seat Height(mm) :810
Ground Clearance(mm) :220
Parking Brake: mechanical lock
Brake(Front/Rear): disc/drum, foot control or left hand control
Tire, Front :AT22x7-10/20Kpa
Tire, Rear :AT22x10-10/25Kpa
Ignition Type :CDI
Fuel Tank Capacity (L) :12
Front Suspension :leading arm
Rear Suspension :swing arm
Max Speed(km/h) :85km/h
Mini Turing Radium(mm) :2900
Max. Load Capacity(kg) :145
Battery Specifiction :12V12Ah
NW(kg) :220
GW(kg) :250
Quantity of Loading :12pcs/ 20'ft;24pcs/ 40'ft; 35pcs/ 40'hq
