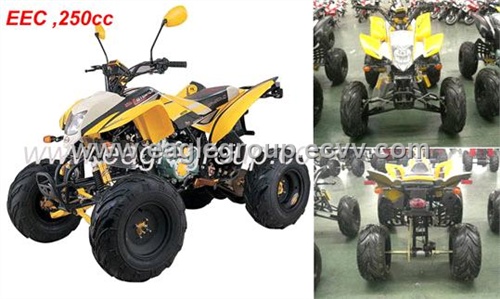

EEC ATV 250cc(YG250E-A2)

1)Dimensions (L x W x H): 1,680 x 1,150 x 1,180mm
2) Wheelbase: 1,160mm
3) Seat height: 860mm
4) Min.Ground clearance: 120mm
5) Rated loading: 160kg
6) Max. speed: 70km/h
7) Tires:
a) Front wheels: 21 x 7 - 10
b) Rear wheels: 20 x 10 - 10
8) Break type (F/R): disc/disc
9) Fuel tank capacity: 4.0L
10) Power source: 12V, 9Ah
11) Min. turning radius: 2,750mm
12) Engine type: 250CC, single cylinder, water-cooling, 4-stroke
13) Cylinder size: 67 x 65mm
14) Compression proportion: 10.0:1
15) Displacement: 229.2ml
16) Max Power: 12.0kW/6,500r/min,
17) Max. torque: 17.5N.m/ 5500r/min
18) Transmission mode: chain
19) Engine oil: 1.1L
20) Ignition mode: CDI
21) Transmission: 4 gears with one reverse gear, manual clutch
22) Lubrication: press splash
23) Start mode: electric

Outer packing:
Carton dimensions: 1470 x 850 x 880mm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
