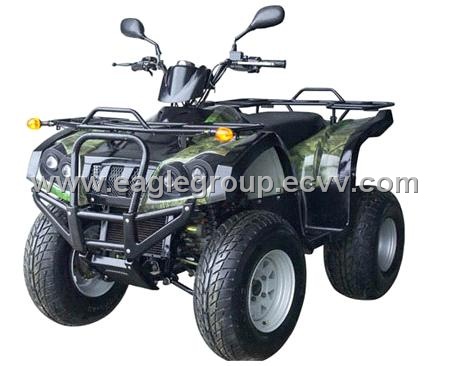

ATV/Quad(YG-ATV260-A)

Engine Type: 1-Cylinder, 4-stroke,Liquid Cooled
Max power (Kw/min): 12.5/7500
Max torque (Nm/min): 17.6/5500
Displacement: 244CC
Bore*stroke (mm*mm): 72*66.8mm
Compression ratio: 10:1
Ignition: DC-C.D.I Starting: Electric
Lubrication: Pressure & Spray
Fuel capacity (liter/gallons): 14/3.7
TRANS:CVT Auto(front/rear) range with reverse
Final drive: Shaft 2WD
Clutch type: Auto
Front suspension: Dual A-arm
Rear suspension: Swing arm
Front brake: Dual hydraulic disc
Rear brake: Hydraulic disc
Parking brake: Rear wheel
Front/Rear tire: AT 24*8-12/ AT 24*11-10
Climbing degree:30 Seat height (mm):865
L*W*H(mm/in)=2100*1170*1170/82.7*46.1*46.1
Seat height (mm/in): 860/33.9
Ground clearance (mm/in): 190/7.5
Dry weight (kg/lbs): 200/440
Qty/20'GP :8 Qty/40'GP:20 Qty/40'HP:29
