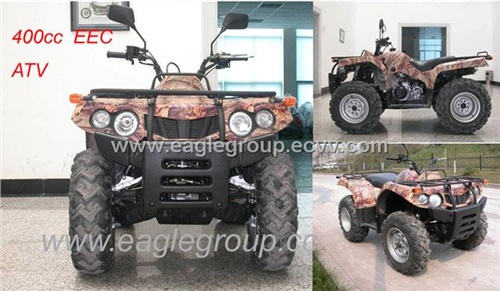

400cc EEC ATV/Quad(YG-400E-A1)

Specifications
Engine Type :4 stroke,air-cooled, single cylinder
Cylinder Arrangement :Vetical Single
Cylinder Dia X work stroke: 83x71.6mm
Final Drive :shaft drive
Bore x Stroke(mm) :26N.m(5000r/min)
Piston Displacement(cc) :387.4ml
Compression Ratio :8.7:1
Maximum Power(kw/r/min) :16/6500
Max Torque(N.m/r/min) :16/5500-6500
Starter Sytem :electric or hand
Lubricaiton :Pressure
Trasmission: fully auto with reverse
Overall LxWxH(mm) :2270x1610x1533
Packing Dimension LxWxH(mm) :1940x1050x1160
Wheel Base(mm) :1160
Seat Height(mm) :810
Ground Clearance(mm) :220
Parking Brake :mechanical lock
Brake(Front/Rear): disc/drum, foot control or left hand control
Tire, Front :25x8-12
Tire, Rear: 25x10-12
Ignition Type :CDI
Fuel Tank Capacity (L) :14
Front Suspension :leading arm
Rear Suspension :swing arm
Max Speed(km/h) :75km/h
Mini Turing Radium(mm) :2900
Max. Load Capacity(kg) :220
Battery Specifiction :12V20Ah
NW(kg) :330
GW(kg): 350
Quantity of Loading :10pcs /20'ft;22pcs/ 40'ft; 33pcs/ 40'hq
