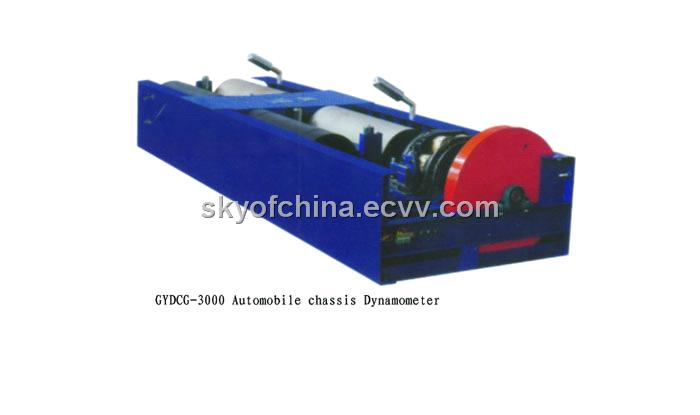

Automobile Chassis Dynamometer
1)The roller's surface is sprayed with plasma hard alloy,with high level dynamic balance
2) Measure the loss power,chassis output power,wheel torque and engine power of the drive line,also can print out the engine power curve.
3) Verify the speedometer and odometer with exhaust gas analyzer to test the exhaust emission amount.
4) Test the performance of automobile's accelerating and sliding.
Main Technical parameter:
Model: GYDCG-160/03F GYDCG-250/10F GYDCG-300/13F
Max axle load mass: 3000kg 10000kg 13000kg
Max absorbed power: 160kw 250kw 300kw
Max brake torque: 1600N.m 1600N.m 2000N.m
Max test speed: 120km/h 120km/h 120km/h
Roller diameter×length: 216*1000mm 370*1100mm 370*1100mm
Roller centre distance: 433.5mm 590mm
Roller in/out width: 700*2700mm 700*2900mm
