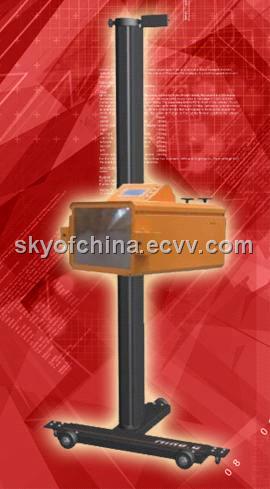

MQD-3B headlight Testers

Temperature: -5 ~ 40                     Relative humidity: 20% ~ 85%                Power supply: AC220V ± 10%,50/60Hz

 In-use power:25W

 Sleep power:5W

 Luminous intensity : 0 ~ 120000cd

 Optical axis offset of upper beam and low beam

Vertical: up 350mm/10m ~ down 525mm/10m  Horizontal: left 525mm/10m ~ right 525mm/10m

 Luminous intensity indication error: ±10%

 Optical axis offset indication error: ±12

 Headlight height survey range:250mm ~ 1400mm

 Test distance: 0.5m

 Guide rail length: 3m

 Weight: 60kg

 Super measure function: it can test and adjust the upper beam, low beam and fog light independently and bring you more convenience

 New DSP processing system is adopted to collect and process the image and the measure precision can be guaranteed

 Ultra-bright LCD equipped with professional windows graph processing system is adopted to make your measure convenient and efficient

 Aiming at physical center manually and 2D mobile setup make you enjoy free at all

 Charge battery can be equipped and make it work without exterior power supply. With power save mode available, it can work in different environment and it will be more comfortable for you

 RS-232 serial communication interface make the networking more convenient

 Providing with blue teeth wireless communication module and make it free from bondage

 Providing with printer interface and realize measure-and-print
