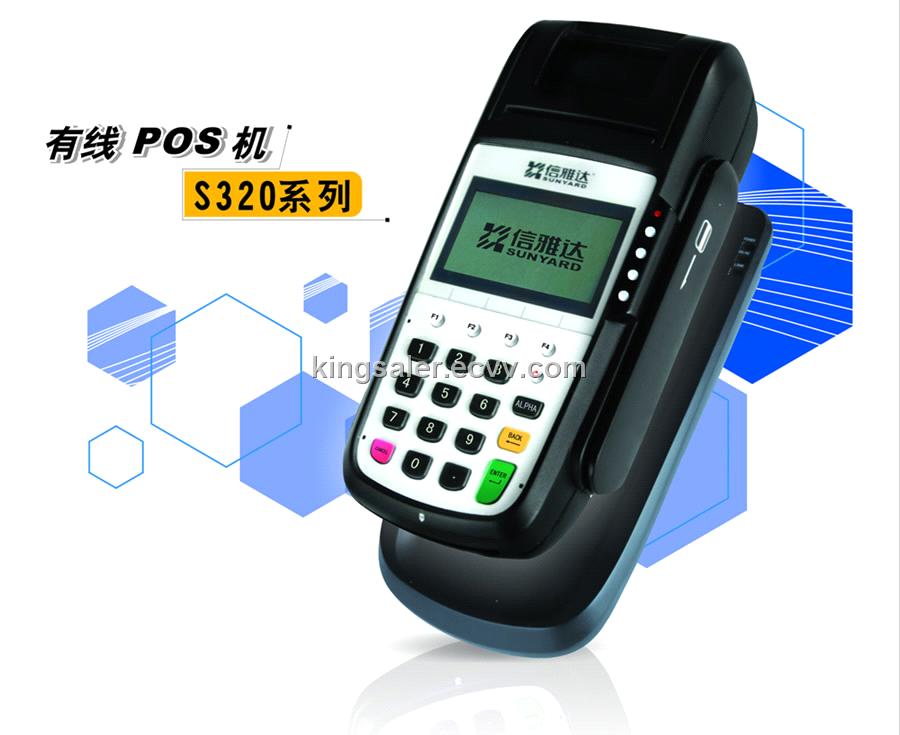

Prepaid System Terminal S320

System Introduction

Sunyard POS S320 series，which adopts the international mainstream technical architecture “embedded operating system +dedicated hardware + cipher unit + dedicated applications， is EMV and PCI compatible”. With ergonomic, compact design, and powerful functions, POS S320 is one of the most excellent choices for banks, financial institutions and merchants.

 Applications

·Retail

·Financial

·Prepaid system

·Gaming: Lottery, Casino

·Hospitality: Restaurants, Lodging

·Public: Government, Education, Healthcare



Technology Specification

1) CPU: 32-bit MIPS high-performance processor; > 96MIPS

2) Memory: 8MB SDRAM, 4MB FLASH Memory（up to 16MB）

3) Display: 128×64 Dots graphic backlit display

4) Keyboard: 24-key ergonomic key board including 11 number keys, confirm key, cancel key, backspace key, ALPHA key, 4 soft function keys, 4 screen location keys and power key

5) Magnetic Card Reader: ISO7812，supporting bi-directional tracks1, 2, & 3

6) IC Card Reader: ISO7816 and EMV2000 compatible，supporting synchronous card

7) SAM Card Slots: 1 SAM card slot (can be expanded to 2)

8) Peripheral Ports: 2 standard RS-232 ports

9) Printer: Thermal printing; > 12 lines /second

10) Modem: Supporting 1200bps Synchronous communication and 56Kbps asynchronous communications, Fast POS Protocol

11) Security: Adopting dedicated security chip and technique Supporting

RSA2048/AES/DES/3DES,X9.8, Master/Session and DUKPT key management

12) Language: Built-in UNICODE font library，including the languages of about 81 countries and regions, such as Chinese, Latin, Greek and Cyrillic

13) RFID Card Reader (optional): 1 RFID card reader supports ISO14443 type A/Type B

14) Power Supply: Input：100～240VAC，50Hz/60Hz，0.8A

15) Output: 9VDC，2.5A

16) Dimension: Handset：205mm×97.5mm×57mm（L×W×H）

17) Base: 200mm×109mm×35.5mm（L×W×H）

18) Environment: Temperature：0℃～50℃ Relative Humidity：5％～90％

19) Development Platform:

Operating system：Linux2.6

Language：GNU C

Supporting multi-applications



Outstanding Features:

·Large Memory；

·Hi-speed thermal printer；

·Built-in hi-speed Modem；

·Ergonomic and compact design;

·Hi-speed dedicated POS security processor；

·Supports multi-applications and remote download;

·Ultra-high security, security data self-erased if abnormally opened;

·EMV2000 L1&L2、PBOC2.0、CCC、CE、China UnionPay Approval.
