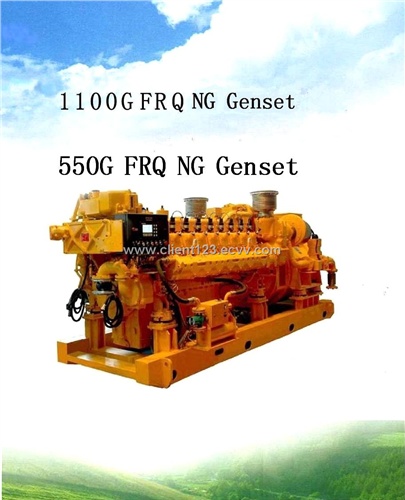

MTU 396 NG genset or MTU 396 LPG genset

MTU 396 NG genset or MTU 396 LPG genset

MTU 396 NG genset or MTU 396 LPG genset

  Prev Product Contact Now Next Product

Detailed Product Description

MTU 396 NG genset or MTU 396 LPG genset
Our company new gas genset 1100GFRQ take the 16V165RQ(MTU 16V396) engine as main power. This new gas engine adopt to the germany MTU company 396 series engine license techinque and the technique of WOODWARD company new EGS-02 gas electrical control fuel e. The following is the technique, quality and characters advantage.
1.       Technical Data For 16V165R(MTU 16V396) Engine And 1100GFRQ National Gas Genset .
---- Genset prime power 1100kw( the recommend alternator standard power is 1200kw), the national gas engine power above 1260kw.( the power is rated power , unallowed overload power.)
---- fuel of the genset can be various gas with min 25% methane, density of the fuel is automatic changed in 5% range.
---- the perfectly self-protected ability.
---- the high efficiency.
(1)   Main Technical Data for Gas Engine 16V165RQ(MTU 16V396)
Item
Specification
Main data
1
Engine  speed
1500r/min
2.
Engine power
1260kw
3.
No of Cylinder .
16
4.
Cylinder arrangement
V type 90°
5.
Bore
165mm
6
Stroke
185mm
7
One cylinder displacement
3.96liters
8
Total displacement
63.36liters
9
The average speed of the piston
9.25m/s
10
Compression ratio
11:1
11
Effective pressure
1.6Mpa
12
National gas consumption rate(gas heat value 8.5kwh/m3)
330
13
Starter
15kw/24VDC
14
Oil consumption at rated power
＜1.5g/kw.h
15
Weight of the engine
About 6400kg
16
Dimension
3350×1549×1906
17
The exhaust temperature front of turbo
≤620℃
18
The exhaust temperature for single line cylinder
≤520℃
(2) Main technical data for gas genset 1100G FRQ
Item
Specification
Main data
1
Rated power (kw)
1100
2
Rated frequency (Hz)
50
3
Rated voltage (V)
400/230
4
Rated currency (A)
1983
5
Rated speed(r/min)
1500
6
Governed type
Governor :WOODWARD
Actuator ProAct-ITB
7
Started type
24VDC(15KW)
8
Prime supplied lubrication oil type
24VDC(500W)
9
Regulable rate of steady voltage (%)
+5
10
Voltage motion rate(%)
1.5
11
Voltage stability time (%)
2
12
Regulable rate of instant voltage (%)
+25,-20
13
Regulable rate of steady frequency (%)
+8(0-8 adjustable)
14
Regulable rate of instant frequency  (%)
+18
15
Frequency motion rate(%)
2
16
Frequency stability time(s)
15
17
Gross weight (with most assessory ) (kw)
12500
18
Dimension (with foundation and bracket ) (mm)
4856*1563*2100
Post Date:8/7/2008
Expiry Date:8/2/2009
