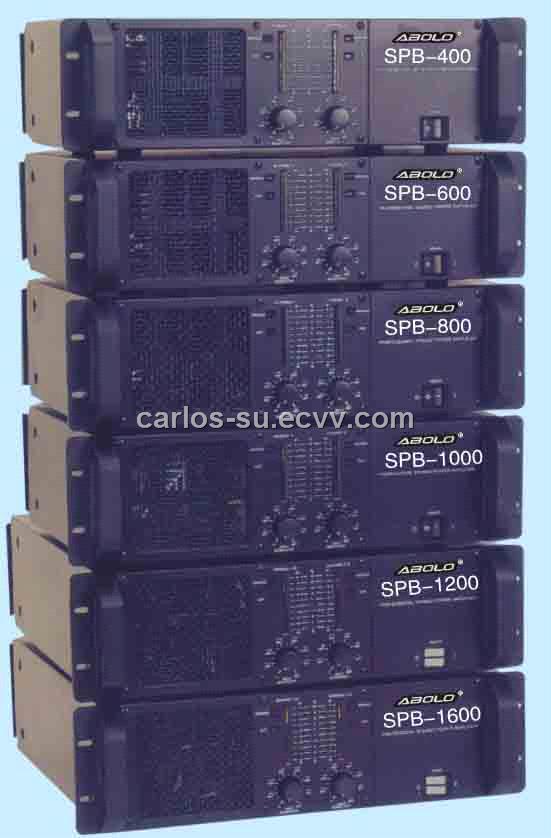

SPB Series
Level indicator in 2*10 LED, overloading, bridge, instruction
Delaying output, protecting for overloading, short circuit, over temperature, DC output etc.
Low-noise fan to ventilate
Signal noise ratio: ≥104Db
Total harmonic distortion: ≤0.1%
Channel Isolation; ≥70dB
Frequency response; Less than ±0.5 dB (20--20KHZ)
Slew rate; ≥30v/ms
Input impedance; 10K ohm
Input sensitivity: 0 dB
Double track output:
8Ω 2*100W, 4Ω 2*200W , Bridge output:400W
8Ω 2*150W, 4Ω 2*300W, Bridge output: 600W
8Ω 2*200W, 4Ω 2*400W, Bridge output: 800W
8Ω 2*250W, 4Ω 2*500W, Bridge output: `1000W
8Ω 2*300W, 4Ω 2*600W, Bridge output: 1200W
8Ω 2*400W, 4Ω 2*800W, Bridge output: 1600W
8Ω 2*500W, 4Ω 2*1000W, Bridge output: 2000W
8Ω 2*600W, 4Ω 2*1200W, Bridge output: 2400W
Additional function: USB port could be designed additionally to link external devices, such as U-disk, SD and CF card etc.
Other dimensions or kinds can be produced as per specific requirements
