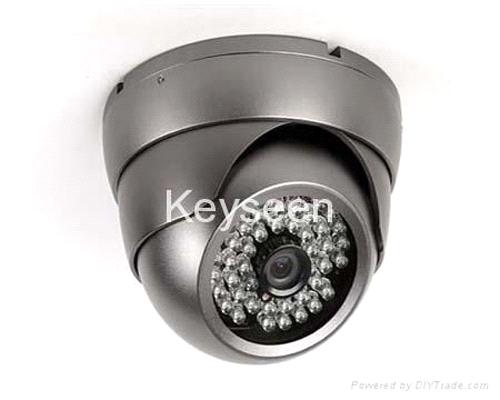

Home and Office Security Camera of IP Camera (KT-V300)

Detailed Product Description

Product Functions:

Visitor Identifying
Home Security
Moving Detection
Entry Detection
Baby and Patient Tending

Installation Process:

You can build a powerful CCTV system with our IP cameras using your existing LAN with router connected to Internet. All you need to do the followings:
1. Install the camera on the ceiling or wall;
2. Connect the camera to one of your free port on the router;
3. Connect camera power;
4. For local access, start IE and type in IP address of the camera;
5. Configure the video, motion detection, Email notification and FTP transfer;
6. For global access, configure router and DDNS and then
7. Start IE and type in IP address or the domain name.

Main Technical Data:

Image Sensor: 1 / 3'' Sony CCD Color
CPU: 32-Bit RISC Embedded Processor
Operation System: Embedded Linux RTOS Real-time
Horizontal Resolution: 420 TV Lines
Min. Illumination: 0Lux(IR on)
IR LEDs: 36~48
Night Vision Distance: 30M~40M
Shutter Speed: 1 / 60(PAL 1 / 50) ~ 1 / 15000SEC
Pan/Tilt: RS485
Video Compression: MPEG4
Audio Compression: ADPCM
Audio Transmission: Two Ways (Optional) *
Network Protocol: TCP/IP, HTTP, FTP, SMTP, PPPOE
Power: 12V DC
Power Over Ethernet: Supported (Optional** )
Application Area: Indoor/Outdoor

Remark:

1. Two Ways (Optional) *, if two-ways is required, additional cost will be charged.
2. Optional**, POE function is available but additional charges will happen.
