Sell Optical Fiber Patchcords

Sell Optical Fiber Patchcords

Detailed Product Description

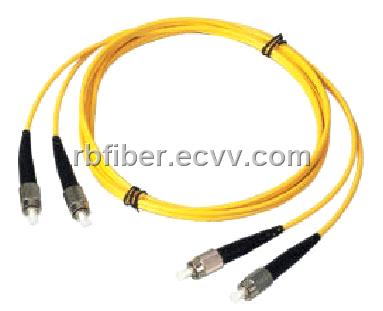

Optical Fiber Patchcords

Features:

Low Insertion Loss

Compact Package

High Reliability & Stability

Cost Effective

Applications:

Optical Fiber Amplifier

Fiber Optic Sensor

Instrumentation

CATV

Performance specification

Parameters				Unit
Operating Wavelength			1310,1550	nm
Insertion Loss (Typical)			SM: 0.20; MM:0.15	dB
Return Loss (Min.)	Single mode	PC	>40	dB
		UPC	>50	dB
		APC	>60	dB
	Multi mode	PC	>30	dB
Exchangeability			≤ 0.2 dB (Connect Randomly)
Tensile Strength			≤ 0.2 dB ( 0 15 Kgf )
Vibration			≤ 0.2 dB (550Hz, 1.5mm Amplitude)
Temp. Range			≤ 0.2 dB ( - 40 80 C, 55 Cycles )
Operating Temperature			-10~75	°C
Storage Temperature			-40~85	°C

Ordering information

RBCN	-XX	-X	-X	-XX	-X
	1	2	3	4	5

Description detail:

1.Fiber mode, SM: single mode fiber; MM: multi mode fiber

2.First connector type, 1: FC; 2: SC; 3: ST; 4: LC; S: special

3.Second connector type, 1: FC; 2: SC; 3: ST; 4: LC; S: special

4.Cable type, 01: 900um loose tube; 02: 2mm cable; 03: 3mm cable

5.Cable length, 1: 1meter; 3: 3meter; 5: 5meter; S: special

Other Price Terms:

FOB Shenzhen
