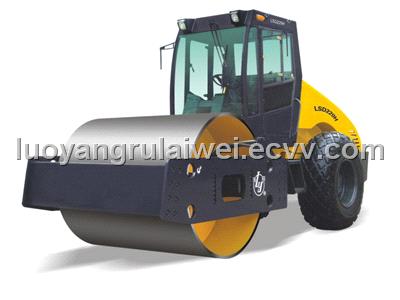

LSD210H/LSD212H/LSD218H/LSD220H Heavy duty vibratory rollers

LSD210H/LSD212H/LSD218H/LSD220H Heavy duty vibratory rollers

Detailed Product Description

Main technical parameters:

Model		LSD210H	LSD212H	LSD218H	LSD220H
Operating mass	kg	10000	12000	18000	20000
static linear load	N/cm	242	303	540	600
Vibration amplitude	mm	1.8/0.9	1.8/0.9	2.0/1.0	2.0/1.0
Vibration frequency	Hz	30/36	30/36	28/35	28/35
Centrifugal force	kN	250/160	270/180	360/280	380/300
Max.travel speed	km/h	10	10	11.2	11.2
Gradeability	%	40	40	45	45
Turning radius	mm	6500	6500	7000	7000
Drum width	mm	2100	2100	2130	2130
Wheelbase	mm	2800	3050	3148	3148
Ground clearance	mm	472	472	472	472
Diesel model		6BT5.9	6BT5.10	CumminsCTA8.3	CumminsCTA8.3
Diesel power	kW	110	110	160	160
Overall dimensions	mm	6000×2250×2950	6000×2250×2950	6005×2360×2993	6005×2360×2993
