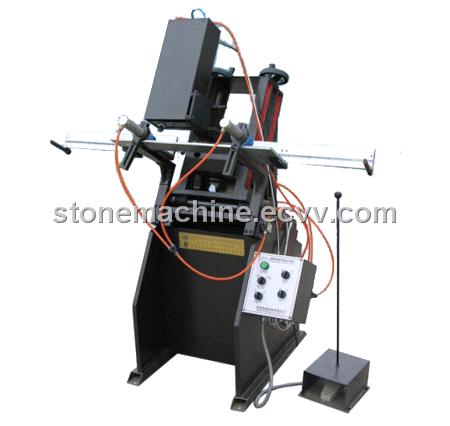

Automatic Water Groove Milling machine for Plastic Profile

Detailed Product Description

The machine is used for processing various water grooves and air pressure balance grooves. There are one upper milling head and one horizontal milling head. The upper one can be adjusted forward, backward, upward and downward. The upper and horizontal directions can be processed with one time clamping. It has the features of high efficiency, reliability, high accuracy and easy operation.
Power Supply
220V  50Hz
Input Power
0.5KW*2/3/4
Working Air Pressure
0.4-0.6MPa
Air Consumption
30L/min
Max-length of Groove
30mm
Max-depth of Groove
40mm
Milling Cutter Diameter
4/5mm
Motor Rotational Speed
25000r/min
Outside Dimension
2940*860*1660mm
Weight
200Kg
