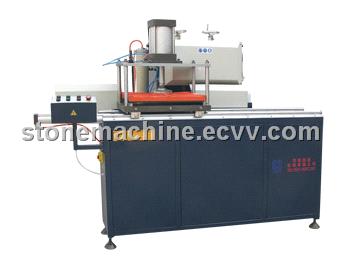

End-milling Machine for Aluminum Door & Window

Detailed Product Description

It can be used for end milling of the profiles for aluminum doors and windows.With a large work bench and long cutting stroke,it can mill 6-10 profiles with one operation.With adjustable cutting tools,it is unnecessary to replace multiple cutting tools in case of changing the product so as to save the production period and cost of cutting tools.Multiple sets of cutting tools can work simultaneously or separately based on different profiles.With bigger diameter of cutting tools,the quality of machining surface is better.The hydraulic damping cylinder is used to push the feed of cutting tools to enable more stable operation.The thickened clamping plate can prevent the profiles from deforming.

Power Supply	380V 50Hz
Input Power	6.6KW
Working Air Pressure	0.5-0.8MPa
Air Consumption	150L/min
Motor Rotational Speed	2800r/min
Main Shaft Diameter	32mm
Milling Cutter Diameter	250mm
Outside Dimension	240012001800mm
Weight(about)	450Kg
