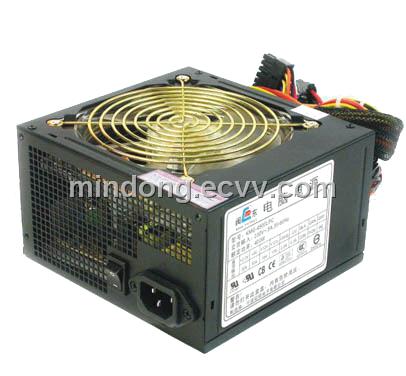

400W Computer power supply

Detailed Product Description

Characteristic:

* Edition:ATX 12V 2.2(silent)

* Support multiple-core processor to realize the digital family multitasking

* +12V double outputs ,at +12V2,the peak current is 16.5A

* Conserve energy,standby power consumption＜1w,transformation power﹥83%

* At+5VSB, the perk current is high to 4A,which can meet the supplied power demand for multiple USB equipment

* Case with radiating holes

* 20+4PIN, 6pcs of SATA , 3 output sockets(4 large and 1 small)

Specification:

· Temperature range：Working Temp.:0℃-50℃; Storage Temp.: 20℃+80℃
· Relevant Temperature Modulus: 0.01%/℃
· Instant Circuit Response: Output voltage is lower than 1ms response

time, Max. 25% of load variations

· Hold up time：16ms at full load and normal voltage

· Withstand voltage: I/P—FG：1500VAC， 60 second
· Humidity：5--95%RH
· Efficiency：Commonly 70%, Min. 65% at full load
· Overload protection: Max. 150%
· Inrush current：Max. 30A at 115VAC，Max. 50A at 230VAC cold start at 25℃

· Over voltage protection：Sense lever: +3.3V/+5V/+12V; Max.voltage: 4V/6V/13.2V

Characteristic：

· Voltage：90-132VAC/160-265VAC
· Frequency：50/60HZ
· Input current：6.0A{RMS}/115VAC,3.0A{RMS}/230VAC
? Safety standards:UL,FCC,3C,CB,CE
