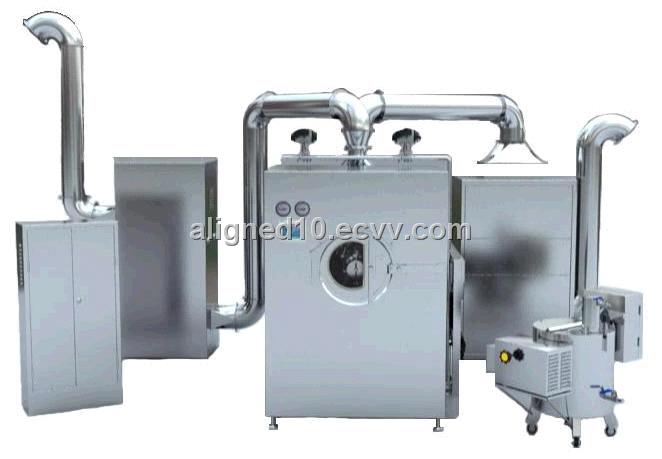

BGW Series High-efficiency Poreless Film Coating Machine

Detailed Product Description

Introduction:
The BGW Series high-efficiency poreless filmcoating machine is a high-efficiency, energy-saving, safe, clean, computer-controlled and mechatronics equipment which is used for coating sugar, organic film, water soluble film, slow and controlled release film on traditional Chnese and Western tablets and pills(including micropills, small pills, water-bindered pills, drip pills and granulated pills) and conforms to the requirement of GMP. It is a high-tech product first successfully developed in China by this factory.

Main technical parameters:

Model                                         BGW-10           BGW-75           BGW-150
Production capacity(mm)                    10                   75                     150
Drum speed(rpm)                              6-30                 4-19                  2-15
Motor power of main machine(kw)     0.55                 1.1                      2.2
Motor power of hot air machine (kw)   0.55                1.1                     1.1
Motor power of exhaust machine(kw)   335.5             335.5            335.5 Weight of main machine(kg)                    560            1000           1200
Weight of high-effect filtration hot air machine(kg) 150             250            300
Weight of exhaust machine(kg)                             300              300           400
Dimensions of main machine (LxWxH)(mm)

1000x1500x1600 1250x1990x1880 1430x2250x2060
Dimensions of high-effect hot air machine (LxWxH)(mm)

610x610x1400 900x1090x2160 1150x1090x2300
Overall dimensions of exhaust machine (LxWxH)(mm)

790x730x1990 790x730x1990 920x810x2090
