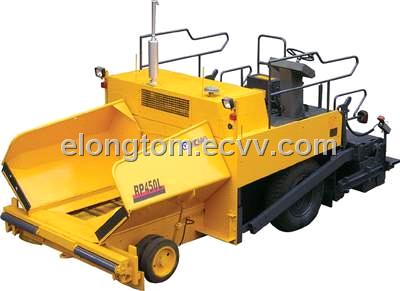

RP450L Asphalt Concrete Paver

Detailed Product Description

It is designed with advanced technique of the similar paves abroad and home. Its working width is from 2.8m to 4.5m and working thickness could be adjusted infinitely, the working productivity could reach 100t/h. It uses the mechanical driving, hydraulic steering, electrical controlled conveyor and auger, electronic swith that control-working unit, all these ensure easy and convenient operation, good quality and high efficiency.

Item
Unit
Parameter
Basic working width
m
2.8
Max working width
m
4.5
Max paving thickness
mm
300
Paving speed
m/min
I:3.3  II: 7.0
Traveling speed
km/h
I; 2.7 II: 5.6 III: 10 IV: 16.6 V:2.2
Theoretical productivity
t/h
100
Hopper capacity
t
11
Gradient ability
%
20
Tamper frequency
Hz
0-25
Crown adjust
%
0-3
Smoothness
mm/3m
4
Slope leveling tolerance
%
±0.03
Engine type

R4105G18
Rated output
kw
48
Speed
rpm
2000
Tank capacity
L
95
Weight
t
10.2
Overall dimension
mm
5495*2800*3452
