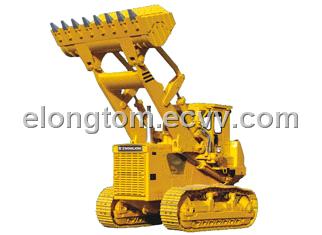

ZOOMLION ZY65C Loader

ZY series of loaders are crawler hydraulic transmission and hydraulic control loaders whose engines adopt Stair supercharged diesel engines. The transmission system is mainly composed of torque converter, shaft coupling, gear box, central transmission and steering clutch, and final transmission, etc; walking mechanism is mainly composed of bogie frame, unilateral bearing wheel, bilateral bearing wheel, guiding wheel, riding wheel and crawler. Working device is composed of bucket, movable arm and joint-bar parts; hydraulic system is mainly composed of torque converter hydraulic system, steering hydraulic system and working device hydraulic system; control system is mainly composed of throttle, speed changing, steering and braking, and working device control systems, etc.

1. The torque converter is single-stage, single-phase and three-element torque converter with reasonable structure, advanced performance and water cooling mode.

2. Gear box which has three forward gears and three reverse gears adopts epicyclic gearing, clutch gear shift, and hydraulic control which are portable and reliable.

3. Steering mechanism adopts wet multiple discs clutch, copper based powder metallurgy friction plate, hydraulic steering and braking which can be combined in one control . That is to say, foot treadle can leave steering clutch first and then continue to step on it to brake, which is convenient and reliable.

4. Final transmission adopts secondary spur gear transmission; chain wheel uses inlayed gear block which is convenient for assembling and disassembling. Sealing device inside and outside chain wheel uses floating oil seal which has a long lifetime and well reliability.

5. Guiding wheel, bearing wheel and riding wheel of the walking mechanism use floating oil seal and there is bimetal sleeve with good wear resistance and reliability in guiding wheel and bearing wheel. Tensioning crawler uses oil pressure to be adjusted which is convenient and reliable. Between crawler belt and crawler pin is equipped with dustproof oil seal which greatly extend the service lifetime .

6. Working device is six-bar-linkage mechanism which is flexible and reliable. Bucket tooth uses low alloy steel casting which has high rigidity, high impact toughness and is convenient for changing. Shaft sleeve uses plastics-bronze-steel back compound non grease mark lubricating materials with well wear resistance and reliability.
