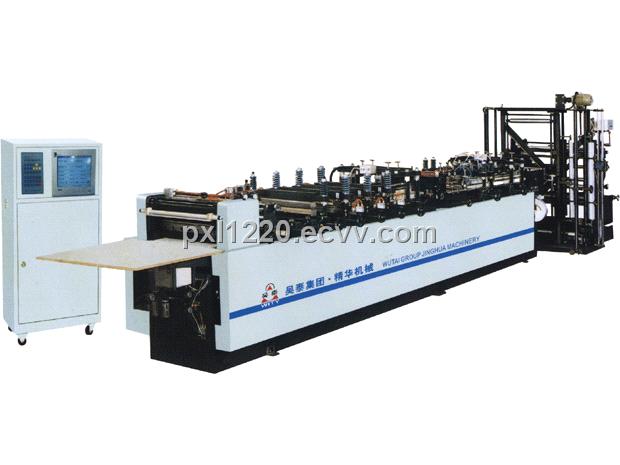

bag making machine

Profile:
It is suitable for compound film of three-side(standing bag, embossing bag)medium-sealing bag-made machine to produce successively.It adopts double photoelectric correcting deviation, micro-computer control, coloe screen display.Out device of machinery transmission, pneumatic blade.Pnumatic pinhole, imported frequency governor, double-step pull, photoelectric tracking as well as double sending and ironing etc advantages.Convenience of operation, accurate fixed position, reliable Quality.

Main techmical parameters:
Model FBD—350A FBD—400A FBD—500A
Width of making bags 350mm 400mm 500mm
Length of making bags 700mm 700mm 700mm
Speed of making bags 30—180pcs/min 30—180pcs/min 30—180pcs/min
Width of sealing 60mm 60mm 70mm
Diameter of unwinding 600mm 600mm 700mm
Overall dimension 8000x1300x1650mm 8000x1400x1750mm 8000x1600x1950mm
Total power 17kw 19kw 22kw
Weight 3500kg 4000kg 5000kg
