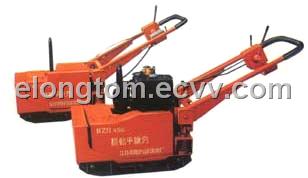

HZR450, HZD450 Vibrating Plate Compactor

Detailed Product Description

HZR450, HZD450 Vibrating pate compactor is a kind of self-propelled compacting machinery. Its new design comes the first among the same kind of machine in China with its main technical specification and performance being equal to international standards. With good compacting results, the machine could be infinitely adjustable in terms of driving forward/reverse speed and centrifugal force, and it can also realize vibrating compaction when being stationary. This kind of vibrating plate compactor is widely used for compacting building foundation, fill foundation, sidewalk, highways, squares, lanes, yards, plumbing tunnels, and foundation for the areas around the bridge support pillars, etc. It is the necessary and ideal equipment for replacing the “Frog-type” vibrating tamper.
Operating mass
Without side plate
kg
450
With side plate
470
Compacting plate dimension (length*wideth)
Without side plate
mm
570×570
Witht side plate
570×530
HZR450 With diesel engin
Model

190F
Power
kw
5.88
Rotation speed
r/min
2200
HZR450with electromotor
Model

Y132SW-2
Power
kw
7.5
Rotation speed
r/min
2900
Vibrating frequency
Hz
46
Amplitude
mm
2.58
Centrifugal force
kN
40
Working speed
m/min
0-22
Gradeability

≥20%
