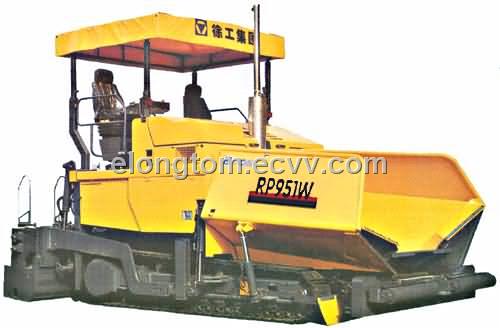

RP951W Asphalt Concrete Paver is a construction machine mainly used for the paving project on the road base and surface or way of various kinds of material. The machine incorporates the most advanced technology and advantages of the manufacturers’ abroad with similar modals. This type of machine is the first one to have the most advanced technology, such as computer-temper vibration, which makes the machine features with the advantages from many other manufacturers. All the key parts for the machine are purchased from international manufacturers to ensure the complete machine with the same quality and reliability as that of the imported machine. Therefore, RP951W becomes the ideal equipment for the paving job on stabilized soil for road base and asphalt concrete for road surface.
The main features for RP951W Asphalt Concrete Paver
1. Driving system with control for right and left hand separately; computer-control; auto-control technology for paving with constant speed.
2. 4 sets of separate full hydraulic closed transmission adopted on material distributing right and let hand; material level controlled with super sonic sensor technology, so as to achieve full proportional even material feeding.
3. Material distributing right and left hand can move up and down expediently, so as to adapt the different paving thickness and increase material pretrial complete uniformity.
4. Auto-leveling system with electric auto-leveling technique
5. Screed with specific technology of dual tamper bars.
6. Centralized lubricating system ensures automatic and even lubricant feeding to bearings in high temperature
7. Adopted with an advanced, mature and reliable Deutz BF6M1031E Water-cooling Diesel Engine, with a strong power.
8. Travelling crawlers with large contacting surface ensure safe and reliable working performance even on poor conditioned roads.
9. Distributing auger, material distributing bottom plate and screed bottom plate made of high wearing-resistant alloy and imported wearing-resistant material.
10. Control panel shows directly and clearly all working functions, paving, traveling speed; and could be mounted either at right or left hand.
11. The complete machine features with high automation, easy and convenient operation, and excellent construction performance with high efficiency.
|
Item |
Unit |
Parameter |
|
Basic working width |
m |
3.0 |
|
Max working width |
m |
9.5 |
|
Max paving thickness |
mm |
350 |
|
Paving speed |
m/min |
0-18 |
|
Traveling speed |
km/h |
0-2.4 |
|
Theoretical productivity |
t/h |
700 |
|
Hopper capacity |
t |
14 |
|
Gradient ability |
% |
20 |
|
Smoothness |
mm/3m |
3 |
|
Slope leveling tolerance |
% |
±0.02 |
|
Engine type |
|
D6114ZG1B/BF6M1013 |
|
Rated output |
kw |
140/2300 133/2300 |
|
Tank capacity |
L |
270 |
|
Weight |
t |
22-28.6 |
|
Overall dimension |
mm |
6460*3000*3900 |
