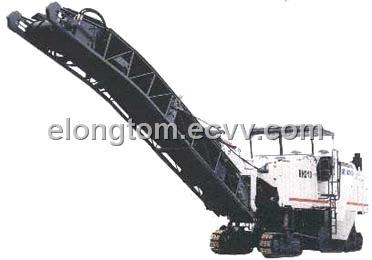

RG210 Cold Milling Machine

RG210 Cold Milling Machine

RG210 Cold Milling Machine

  Prev Product Contact Now Next Product

Detailed Product Description

1. Be equipped with hi-quality effective on-line data control and trouble diagnosis system.
2. Full hydraulic transmission, proportional control by liquid and electricity.
3. Adopting with micro-computer technology, optimize the auto-adjustment for power output according to various road material to be milled.
4. Be equipped with cable sensor to make checking and testing, and digital display for milling depth. And milling depth can be automatically controlled.
5. The milling drum are driven by means of auto-tension belt.
6. By means of hydraulic stepless speed regulating and differential lock, the four traveling crawlers can obtain even driving even if traveling on the slippery ground.
7. Four –crawler steering with crab-walk function.
8. Spacious and comfortable operation station, with two control panels.
9. Be equipped with the milling tools which are easy to be replaced everywhere.
10. Fully enclosed 2-steps conveying belt, with 90o swinging angle (to left and right) and unloading height being adjustable.
Item
Unit
Parameter
Max milling width
mm
2100
Max milling depth
mm
300
Milling drum


Clearance between tools
mm
15
Tour number

174
Diameter of milling drum (with tools)
mm
1080
Max tilting angle of milling draum

5o
Diesel engine manufacturer
Deutz

Model

BF8M1015C
Type of cooling

Water cool
Cylinder number

8
Rated power

419kw
Engine rotation speed

2100rpm
Fuel consumption: 1/1loadL/h

122
Working speed
M/min
0-31
Traveling speed
Km/h
0-4.5
Gradeability(working gear)
%
100
Gradeability(traveling gear)
%
100
Clearance to ground
mm
190
Load on front shaft
kg
15435
Load on rear shaft
kg
13060
Tare
kg
28500
Operating weight
kg
30000
Front crawler
mm
1700*305*650
Rear crawler
mm
1700*305*650
Fuel tank
L
1200
Liquid tank
L
280
Water tank
L
2500
Electrical system
V
24
Belt conveyor


Width of primary belt
mm
800
Width of unloading belt
mm
800
Capacity of belt conveyor
m3/h
290
Mechanic dimension
mm
7750*2880*3000
Belt conveyor dimension
mm
8000*1150*1500
