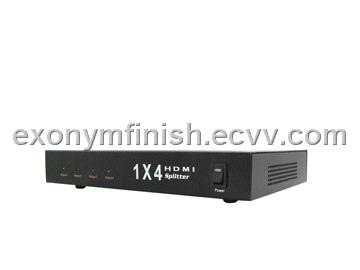

HDMI Splitter (1X4)
Model:RAHMS14
INTRODUCTION
-The RAHMS14 is a four outputs HDMI splitter
-It distributes the HDMI input into four identical outputs.
-These four outputs are synchronized.
- RAHMS14 has the ability of buffering and amplifying
-Series connection of RAHMS14 achieves long distance
transmission of HDMI signal of more than 15 meters
-When two or more RAHMS14 are cascaded
they can be used to create a larger distribution
-RAHMS14 offers solutions for HDTV retail and show site
-HDTV, STB, DVD and Projector factory, noise
-space and security concerns, data center control
-information distribution, conference room presentation
-school and corporate training environments.
-FEATURES
-Easy to Use: Install in seconds, no need for setting
-Distribution: 4 identical HDMI outputs
-Cascaded: Large distribution achieved by cascading RAHMS14
-HDCP compliant.
CONNECT AND OPERATE
1) Connect the HDMI input source into RAHMS14. (Input cables are optional)
please refer to connection diagram section.
2) Insert the DC side of 5v power supply into RAHMS14 and then
connect the AC side of the power supply into the wall outlet.
3) Turn on the power.
SPECIFICATION:
-Operating temperature range:-5 to +35°C (-41 to +95°F)
-Operating humidity range:5 to 90 % RH (no condensation)
-Video Amplifier Bandwidth:140 MHz
-Input Video Signal:0.5-1.0 volts p-p
-Input DDC Signal:5 volts p-p (TTL)
-Maximum Single Link Range:60Hz
-Power Consumption:15 Watts (max.)
-Power Supply:5VDC
-Dimensions:270mmx40mmx200mm
-Weight:2000g
PACKAGE CONTENTS
1) Main unit. P/N_RAHMS14
2) 5V DC Power Supply.
3) User Manual.
