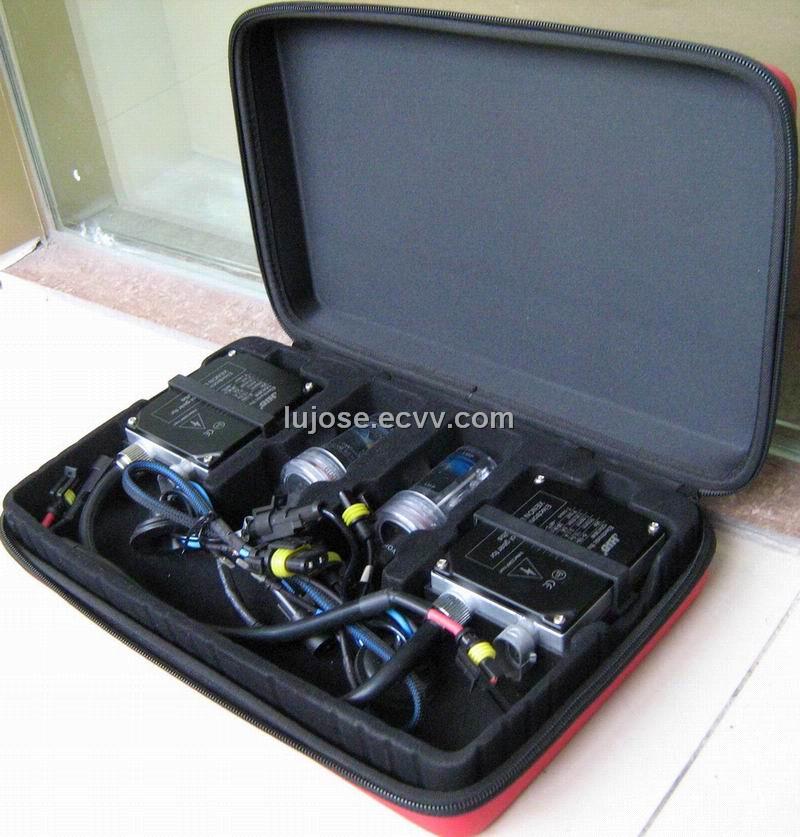

HID xenon kit with DSP (intelligent) ballast

Detailed Product Description

HID Ballast Comparison between Huanhui, Hella and JYE
      MAKE                                 PARAMETERS
HELLA
OSRAMS
JYE(of my company)
Input Voltage range
6- N/M
6-16V
6-18V
Pickup Current
Cold Boot: 9.5A              Warm Boot>3.3A
Cold Boot: 9 A                 Warm Boot: >4.5A
Cold Boot: <5.0A                 Warm Boot:<4.0A
Testing voltage
13.5V
13.5V
13.5V
Steady-state Current
3.0A
3.0A
3.0A
High Voltage Protection Point
No
18.3V
18±0.5V DC
High Voltage Recurrent Point
No
18V
17±0.5V
Low Voltage Protection Point
5.5V
6.3V
6.0±0.5V DC
Low Voltage Recurrent Point
8.5V
8V
8.8±0.3V
Constant power work range
8.5-22V
10-18V
6-18V
Output Power
35.5W
35.3W
35±1W
Output Voltage
60-160V(AC)
60-125V(AC)
85V AC (60~160V AC)
Measure
89*78*34mm
82*73*16mm(slim ballast)
L×W×H: 83×71×30mm
weight
400g
260g
240g
Working Efficiency
87.6%
87.2%
>87.6%
EMC Performance
Inset Double Filter
Inset Double Filter
Inset Double Filter
Design
Digital
Digital-Simulated
DSP(Intelligent)
Remark
The input/output power would increase as the input voltage increases above 22v
There would be no energy-saving effect when the output rises to 36v/80w.
The ballast of osram could not ignite used HID bulbs after tube voltage is above 125v.The local HID bulb would flicker and die out when the input voltage is below 8v.
Low pickup current; ignitable by pure AC; operated by AC; no flickering at boot up;good performance at low voltage, no flickering and dying out.
FOB Price:USD54-111Shenzhen Port
Other Price Terms:TT,LC
