cnc engraving machine .cnc machine

Detailed Product Description

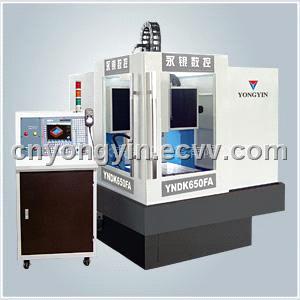

YNSK650FA CNC engraving /milling machine
Import spanish FAGOR8055IA digital control system, suitable  for in engraving various materials,like mould manufacturing and engraving , complicated aluminum engraving,copper engraving ,steel,wood ,plastic, chest card,arts and crafts and so on

Digital control series Taiwan new generation8055iA
worktable :530-650mm
guide trail : Taiwan PMI
distance :650*550*260mm
homemade principal axis/ rotating speed3000-18000
worktable structure :T shape groove
Lead screw precision :0.008
Gantry width :700mm
maximum power consumption 7KW
maximum carrying capacity :350KG
Lead screw lubrication : automatic
Gantry height :420mm
principal axis cooling/water cooling
Maximum feeding speed :10m/min
machine tool net weight :3500KG
power source : three-phase 380V
Optional: Automatic main axle constant temperature refrigerator
maximum cutting speed :10m/min
principal axis power 4KW
height :2000mm
collet φ3 φ4 φ6 φ8 φ10
Japanese automatic tool setting gauge :METROL
distance from the principal axis end to the worktable :60-320mm
area :2000*1600mm
T he above location parameter is referred to national standards, us ing British RENISHAW dual-frequency laser interferometer and the ball bar instrument to measure .
positioning precision :0.01/300mm
repeated positioning precision :0.005mm
