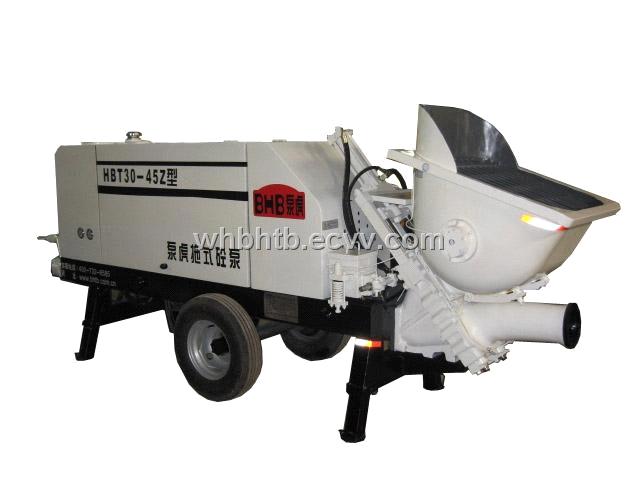

The smallest concrete pump in China

Detailed Product Description

HBT30-45Z Mian Technical Data
Items		Unit	Parameters
Whole performance of pumping system	Distributing valve style		Gate valve
	Max.theoretical output	M3/H	32
	Max.theoretical pump pressure	MPA	8
	Maximum stuff diameter	MM	slick scree:50 scree:40
	Cylinder size(diameter X stroke)	MM	φ195x1400
	Hopper capacity/Feeding height	L/MM	450/1400
	Concrete delivery pipe inner diameter	MM	φ125/φ150
	Concrete slump	MM	80-230
power system	Rated power	KW	45electromotor
	Power	V/HZ	380
	Rated rotation speed	R/MIN	1480
Other parameters	Tube wash way		Water(reciprocating piston)
	Total weight	KG	2800
	Hydraulic tank capacity	L	180
	External dimensions(LXWXH)	M	4.6x1.2x1.7
	Trailer speed	KM/H	<=8
	Theoretical delivery distance	M	Vertical:80
	Theoretical delivery distance	M	Horizontal:360
