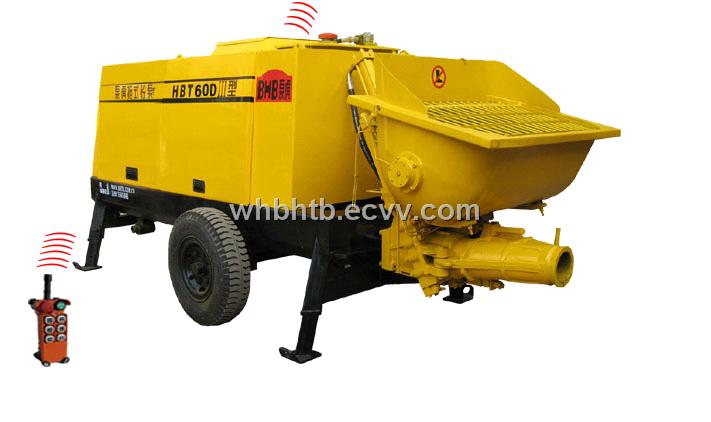

HBT60DIII

Detailed Product Description

HBT60DIII Mian Technical Data
Items		Unit	Parameters
Whole performance of pumping system	Distributing valve style		Gate valve
	Max.theoretical output	M3/H	61.5
	Max.theoretical pump pressure	MPA	8
	Maximum stuff diameter	MM	slick scree:50 scree:40
	Cylinder size(diameter X stroke)	MM	φ195x1400
	Hopper capacity/Feeding height	L/MM	450/1400
	Concrete delivery pipe inner diameter	MM	φ125/φ150
	Concrete slump	MM	90-230
power system	Rated power	KW	75
	Power	V/HZ	380
	Rated rotation speed	R/MIN	1480
Other parameters	Tube wash way		Water(reciprocating piston)
	Total weight	KG	5500
	Hydraulic tank capacity	L	370
	External dimensions(LXWXH)	M	5.77x2.075x2.04
	Trailer speed	KM/H	<=8
	Theoretical delivery distance	M	Vertical:100
	Theoretical delivery distance	M	Horizontal:350
