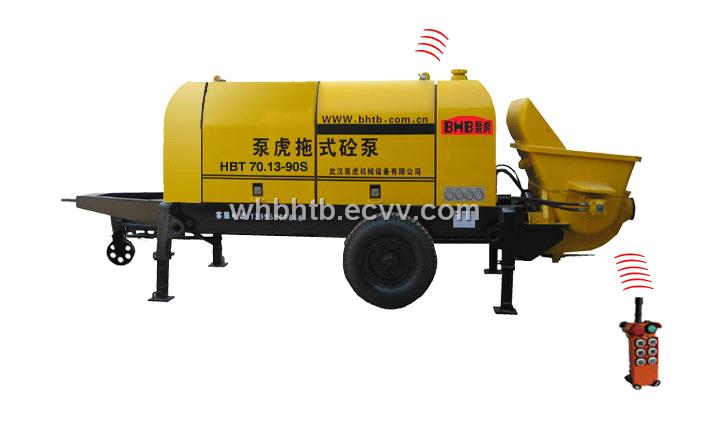

HBT70.13-90S

Detailed Product Description

HBT70.13-90S Main Technical Data
Items		Unit	Parameters
Whole performance of pump	Distributing valve style		S valve
	Max.theoretical output	M3/h	77
	Max. theoretical pump pressure	Mpa	13
	Cylinder size(diameterxstroke)	mm	φ200x1600
	Hopper capacity/Feeding height	L/mm	800/1450
	Outlet diameter	Mm	180
Power system	Rated working flow of the main pump	L/min	332
	Power	Kw	90
	Rated rotation speed	r/min	1480
Hydraulic system	Circuit type		Open circuit
	Pumping system pressure	Mpa	24
	Distributing system pressure	Mpa	23
	Mixing system pressure	Mpa	14
	Max. mixing speed	R/min	32
	Hydraulic oil tank capacity	L	580
Other parameters	Max.stuff diameter	mm	Slick scree:50 scree:40
	Inside diameter of deliver type	mm	φ125/φ150
	External dimensions(LxWxH)	M	6x2.16x2.6
	Theoretical max.delivery distance	M	Vertical:190
	Theoretical max.delivery distance	M	Horizontal:580
	Total weight	Kg	6000
