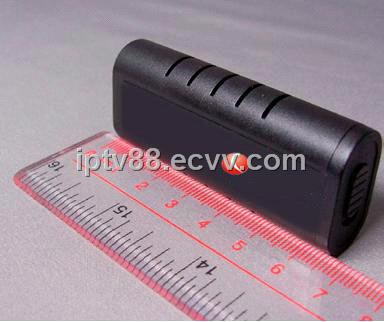

Mini Bluetooth GPSReceiver (GR29)

GPS Data Receive, Bluetooth Technology transmit, Application that have Bluetooth Function for communication equipment, Orientation, Navigation PDA Smart phone. Notebook and PC etc.

Feature
High Sensitivity, High Performance GPS chip, can receive 16 satellitic signal Simultaneity. According with Bluetooth 2.0 class 2, support Bluetooth across communication Profile (SPP Profile). Support NMEA-0183. Low power consume, least 7 hours continurance working time. Re -chargeable li-battery. 3 LED indication light show charge states of Bluetooth. GPS. Appearance terseness, slinky, portable.

Specification

Dimension: 65（L）×28（W）×15（H）mm
Weight: 30g

1) Storage Temperature: -20C ~60C Working Temperature: 0C~ +60C(inside).
2) Air humidity: 5 ~ 90%
3) Input: +4.75~+5.5V direct current
4) battery: 450mA/h Lithium Polymer battery
5) Frequency: L1 1575.42MHz, C/A code
6) Channel: 16
7) Speed of locating (average) Hot Start: 4 sec. Warm Start: 34 sec. Speed of locating: 42 sec.
8) Tracking Sensitivity: -158dBm
9) Locating precision: 2.5m CEP
10) Height limitation: 18000 m limitation: 515 m/s
11) Protocol: NMEA-0183
12) Bluetooth: CSR BC04
13) Bluetooth Version 2.0 Class II
