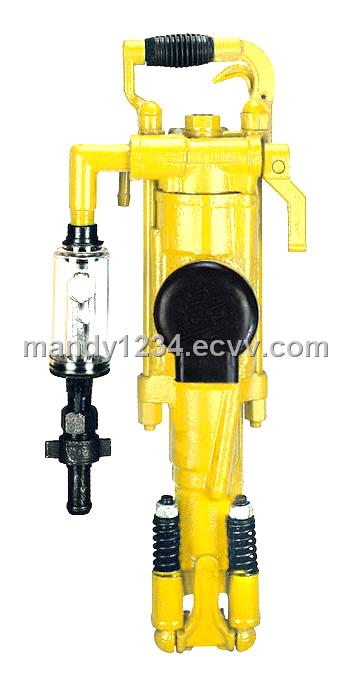

Sell YT28 Air Leg Rock Drill

Weight: 26kg
Length: 661mm
Cylinder dia: 80mm
Piston stroke: 60mm
Air pressure: 0.4- 0.63MPa
Impact frequencey: 37Hz
Air consumption: 81L/S
Air pipe (inner dia): 25mm
Water pipe (inner dia) 13mm
Drill bit dia: 34-42mm
Shank dimensions(hex*length): 22*108+1mm
The function specification that Air pressure is 0.63Mpa

FT160BD Air leg(short)
Length: 1400mm
Push stroke: 965mm
Cylinder dia.: 65mm
Weight: 14.4 kg
FT160 Air leg(long)
Length: 1800mm
Push stroke: 1365mm
Cylinder dia.: 65mm
Weight: 169kg
FY200B oil reservoir
Oil capacity: 200ml
