JSASY-A Series PLC Controlled Computerized High-Speed Gravure Printer

Detailed Product Description

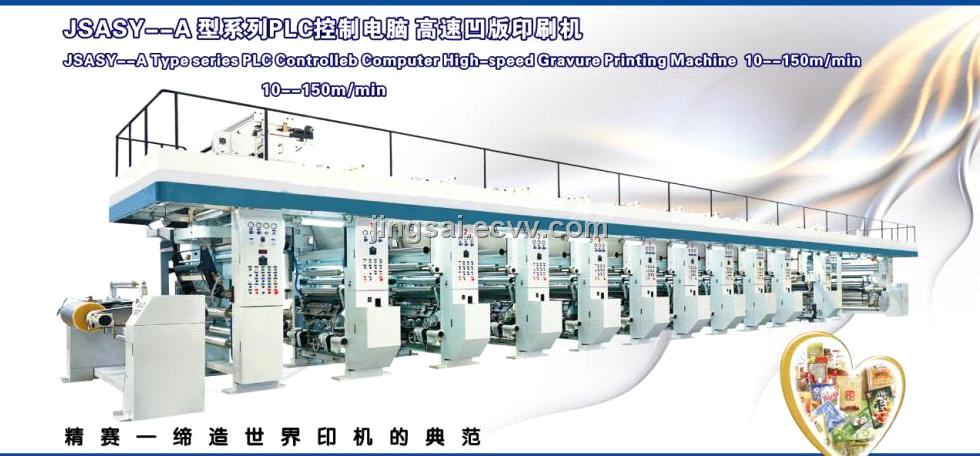

JSASY-A Series PLC Controlled Computerized High-Speed Gravure Printer

Maximum printing speed 150meters/min

Printing material:

Paper 20~80 g/square meter

PET 12~60 Micron

OPP 18~60 Micron

BOPP 18~60 Micron

PE 35~100 Micron

CPP 20~60 Micron

PVC 32~100 Micron

Composite membrane 15~60 Micron

This machine is 8 colors liner-array combined Gravure Printer which is used for printing roll-type materials such as BOPP, PE, PET, PVC, and papers etc; with its advanced seven motors tension-controlling system, the processes such as dynamic synchronization of system tension and zero speed-difference automatic roll-changing are controlled and completed by the center PLC; besides, parameters can be set and changed with Chinese character displayed touch-controlled man-machine interface; the static screen installation for negative and positive observation, and sealed drying case with secondary return air function are also equipped, the wind-screen type hot air drying is enabled by the unique round hole array, and automatic roll-changing work can be done in high-speed working status; the excellent rigidity and stability of the whole machine is ensured by high quality materials and high-precision processing, moreover, the human-based design concept will also bring adequate convenience for operators.

Our main printing machine series:

JSASY-PLC series

JSASY-A Series PLC Controlled Computerized High-Speed Gravure Printer

Maximum printing speed 150meters/min

JSASY-A series

JSASY-A Series Computerized High-speed Gravure Printing Machine

Maximum printing speed 120 meters /min

JSASY-B series

JSASY-B Series Computerized High-speed Gravure Printing Machine

Maximum printing speed 100 meters /min

Other Price Terms:

T/T
