Wattac Electronics Co., Ltd.

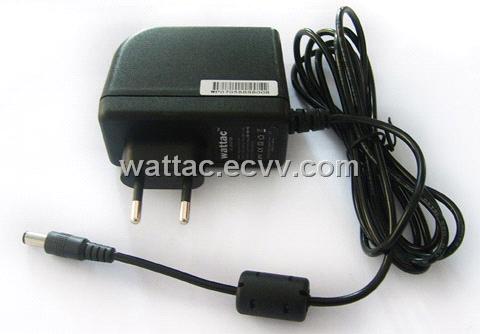

AC adapterBA0181CI-120-A03

Detailed Product Description



Description:
Input Condition
AC100~240V   50/60Hz   0.6A Max
Input Rated Voltage
100Vac~240Vac
Input Voltage Range
90Vac~264Vac
Input Rated Frequency
50/60Hz
Input Frequency Range
47Hz~63Hz
Input Current
0.6A Max
Input Inrush Current
30A Max
Input No Load Power Consumption
0.5W Max  At 115Vac/230Vac
Efficiency
80%  Min
Rated Output Voltage & Current
12V/1.5A
Output Line Regulation
±1%
Output Load Regulation
±5%
Output Over Shoot
10% Max
Output Ripple And Noise
1% Max
Output Rising Time
20ms Max At 115Vac
Output Hold up Time
8 ms Min At 230Vac
Protection
OCP  OVP  SCP  OPP
Dielectric Withstand Voltage
3KV  5mA  60s
Leakage Current
0.25 mA  At 230Vac
DC Plug Specification
5.5X2.5X11 mm
Dimension
35×74×53 mm
Operating Temperature Range
0℃~40℃
Storage Temperature Range
-20℃~+85℃
