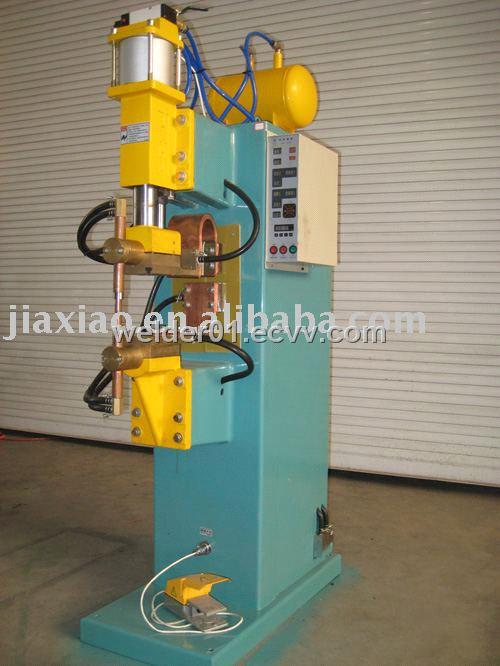

ac spot welder
Technical Data:
|
Model NO. |
DTN-80 |
|
Rate primary voltadg |
380V |
|
Rated capacity |
210KVA |
|
Rated primary current |
105A |
|
Secondary Max. current |
26KA |
|
Max.Welding Capacity(mm)
A3 steel |
4.0+4.0 |
|
Secondary no load voltage |
7.9V |
|
Electrode Pressure |
9000N |
|
Arm length (mm) |
350 |
|
Electrode stroke (mm) |
50 |
|
Weight |
450kg |
|
External dimensinon(mm) |
910×550×1750 |
There are 16 pcs can be packed in 20GP
There are 36 pcs can be packed in 40GP
