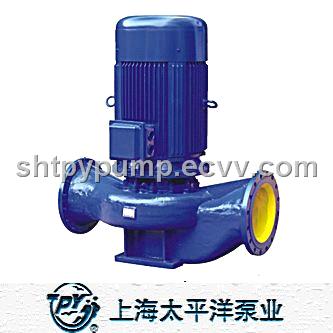

TPG Vertical Inline Centrifugal Pump

Detailed Product Description

Working Conditions:

1.Suction pressure ≤1.0MPa, or the maximum working pressure of pump system ≤1.6MPa, namely pump suction pressure +pump delivery head≤1.6MPa, pump static tes pressure at 2.5MPa. Please specify the working pressure of the system when placing an oeder. To acquired working pressure of pump system greater than 1.6MPa should be specified separately when placing an order for our conenience to use

2.Ambient temperature<40℃,relative humidity<95%.

3.Volume content of solid particles in medium to be delivered shouldn't exceed 0.1% of unit volume, granularity<0.2mm.

Note: to handle medium carring small particals, please specify when placing an order for our convenience to use wear resistant mechanical seal.

Rang of Application:

Daily and fire water supply for constructions,air conditioning system,cyclic pressurization for other cold and hot clean medium.

Type Designation：

TPG TPR TPHG TPYG TPGD 100-160 (I) A（B）

TPG – Vertical Inline Centrifugal Pump

100 – Diameter of pump inlet and outlet (mm)

160 – Nominsl diameter of impeller (mm)

I –Flow classification

A – Primary cutting of impeller
