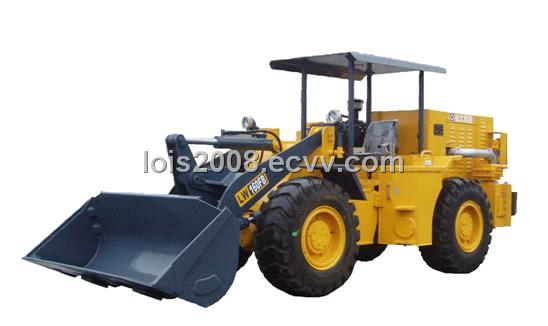

All spare parts of the entire machine involving the coal mine security have passed the safe authentication, and obtained the security identification.
It adopts ZEB-15/24DC safe monitoring device specially used in mining, which can monitor the important explosion-proof parameters of explosion-proof diesel engine system at any time. It also can monitor the engine's surface temperature, the discharge temperature, the machine oil pressure, the water temperature, the rotational speed and the water level of water tank and so on. If there is something unusual, monitors will raise the alarm and shit the engine after 30 seconds automatically. Meanwhile, it has the same function to the flight recorder, which makes it preserve various state parameters of system obstacle and also makes the computer easy to analyze the breakdown causes these data.
It provises the explosion-proof diesel engine, the explosion-proof generator, the explosion-proof locomotive lamp, the gas starting motor which are all for the mining purpose.These equipments have effectively met the safe request of working in the situation of high gas under the mine. It consumes little fuel; it has the big power; it's easy to start safely; its quality is reliable and its production efficiency is high.
The entire machine is 2.55m high and the turning radius is small. It can pass through the middle and the small scale coal mine freely.
It uses the off-road tire with low pressure and width base, and the rear axle may swing around the center, which enable the entire machine have good off-road performance and passing performance, and drive and work in the rugged road.
It uses the fluid mechanical transmission, which can make full use of the enginee power and increase the torque to make the entire machine have greater force of traction.
The work installment is designed well by the computer. Among the unloads height, the unloads rectangular, the digging strength, the promotion ability, the sum of any three items can achieve or surpass the international standard superior products. It has the function of setting level in high place automatically, and its work efficiency is higher.
The operating environment is safer, the caber is equipped with junk-proof driving awning,which can effectively keep drivers safe.
Description:
Overall dimensions (L*W*H) 5685*1820*2315mm
Wheel base: 2350mm
Tread: 1416mm
Rated load: 1.6t
Rated Bucket capacity: 0.9M3
Operating weight <5.6t
Travelling speed 1st (F/R) 6/6 km/h
2nd (F/R) 24/24 km/h
dumping clearance: 1600/2000mm
dumping reach: 1365/1150mm
Max.Breakout force: 52 KN
Time for boom raising time ≤5s
Total cycling time:≤10s
Tires 16/70-20
Engine: Diesel
Engine Model: LRC4105FB
Rated power 45 kW
Rated speed 2400 r/min
