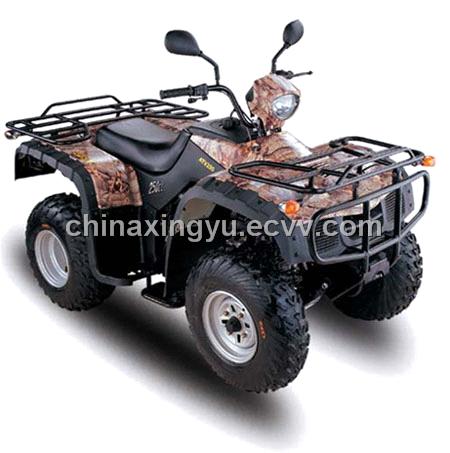

EEC ATV(XY-ATV250-EC)

Specification as below: L*W*H (mm): 1880*1040*1140 Wheel Base (mm): 1160 Engine Type: single cylinders,air cooling,4 stroke start mode: electric / hand starter Power(km/r/min):9.9kw/6500r/min Max speed: >80 Dry Weight: 240 Transmission Mode: shaft drive Brake Type(F/R): Disc/Drum Specification: 12V,14AH Tank Capacity (L):12 Front Hanging: Arm-swing Rear Hanging: Integral Specification of tyre: F(23*7-10); R(22*10-10) Cylinder Diameter: 71*58 Displacement(ml):229.60 Engine Gear: five gear,automatic clutch Parking Trig: mechanic Lock Ignition Mode: C.D.I Person: 1 Compression Proportion: 8.7:1 Conveyance: 12PCS/20'FCL 24PCS/40'FCL 36PCS/40'HQ

Post Date:	9/14/2008
Expiry Date:	9/9/2009
