Detailed Product Description
We are the manufacturer and exporter of non-pressure series solar water heaters, pressurized series solar water heater, solar collector U pipe with solar keymark, solar collector heat pipe, All-glass evacuated solar collector tubes,high pressure solar water heater with heatpipe.
------------------------------------------------------------------

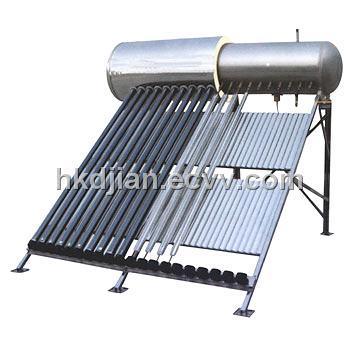

This product is the high Pressure solar water heater
The characteristic of high Pressure solar water heater
1) This type of solar water heater works with high pressure, so do the water it prodeces.
2) It uses the heat pipe to delivery the heat energy, it can works rapidly.
3) Because of no water in the vacuum tube, so there will not tube breakage in the winter.. 4) Each vacuum tubes can work alone, so it can still operate in the event of occasional tube breakage.
The material of this high pressure solar water heater:
1) Inner tank:stainless steel--0.60mm.
2) Vacuum tube:QB-AL-N/AL-58-2000.
3) Outer tank:painted steel-0.4mm;stainless steel SUS304-0.4mm.
4) Frame:coated galvanized steel-1.5mm;stainless steel SUS430-1.5mm.
5) The masterial of insulation:polyurethane 50mm.
6) The reflector of this solar water heater:aluminum component;AL99.85% surface oxidation.
7) Copper coil:?12mm,thickness 0.8mm.
The details of this high pressure solar water heater:
|
Type |
Area( ㎡ ) |
Vacuum tube |
Volume(liters) |
Gross wet(kg) |
|
?(mm) |
Length(mm) |
Qty(pcs) |
|
TZ47/1500-18C |
2.25 |
47 |
1500 |
18 |
150 |
60 |
|
TZ47/1500-20C |
2.50 |
47 |
1500 |
20 |
165 |
65 |
|
TZ47/1500-24C |
3.00 |
47 |
1500 |
24 |
195 |
73 |
|
TZ47/1500-30C |
3.75 |
47 |
1500 |
30 |
240 |
90 |
The Principle of this high pressure solar water heater can get from us.
