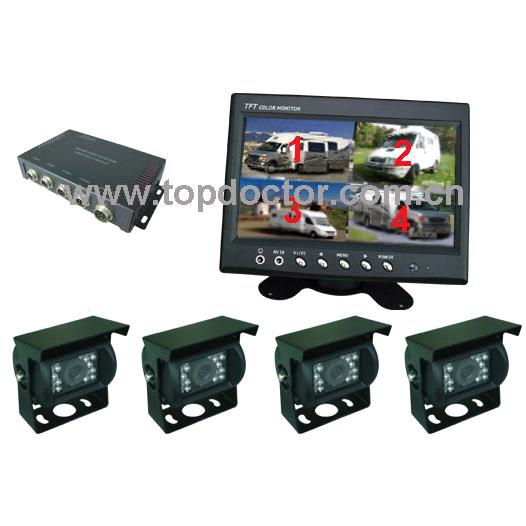

Model No.:TOP-7107LG-4A
Features:
1.)4 camera input terminals,display screen splitter 4 decile camera input image
2.)With 4switch for 4camera.You can choose any image by it
3.)Rear view camera and side view camera can be installed anywhere of your car as you like
4.)Monitor switch automatically to the rearview picture while parking the car
5.)Monitor switch automatically to the camera picture from left or right while the car turn left or right
6.)Remote control,manual/automatic selection screen monitor;
7.)Control box is adopted high technic IC with best anti-jamming.
8.)System cable:5,10,15,20 and 25m optional
9.)The rearview system used in the bus,truck,trailer,ambulance etc safety monitoring.
Rear View Monitor:
1.)Screen dimension:7"inch (new panel)
2.)Screen:TFT-LCD (16:9)
3.)Suitable for camera/DVR/DVD player
4.)OSD language:English,Chinese
5.)Video input:V1/V2
6.)Color system:PAL/NTSC system,auto-switching
7.)Resolution:400R.G.B*234 dots
8.)Backup functions:Up/down,left/right functions
9.)Switch function stand.
10.)Remote control,OSD menu
11.)Adjustable image brightness/color/contrast
12.)Adjustable bracket installation
13.)Car backing backlight function,automatic image switch to right or left
14.)Power supply:DC12V
15.)Power consumption:≤7W
16.)Operating temperature:0℃~+50℃Storage temperature:-20℃~+65℃
Rear View Camera:
1.)Type: IR Rear view & side view camera
2.)Image Sensor:1/4 sharp CCD
3.)Color System:PAL/NTSC system
4.)Effective Pixels:NTSC:510*492 pixels PAL:500*582 pixels
5.)Horizontal Resolution:420 TV line
6.)Len:F=2.5mm
7.)Len view angle:120°
8.)Minimum Illumination:0Lux(LED ON)
9.)IR LED:18IR LED
10.)IR working distance:about 40~50m
11..)Waterproof Resistance:IP66~67
12.)Material:Aluminum Alloy
13.)Power supply:DC12V
14.)CMOS Chip optional
4channel Splitter Control box:
1.)With splitter function (4channel)
2.)DC12~24V
3.)Input Power consumption:9W~18W
4.)Size:165(L)*100(W)*30(D) mm
| FOB Price: | USD10-11Guangzhou |
| Other Price Terms: | T/T in advance,Ex-works Guangzhou |
