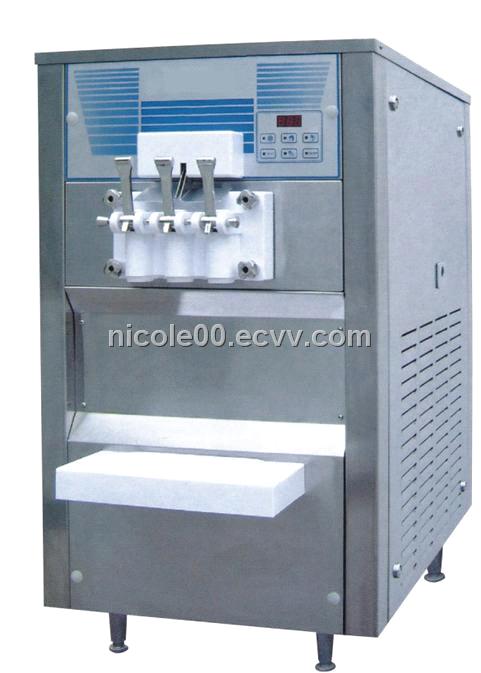

ice cream making machine 225

Table model

Air cooling

Twin twist flavours

Gravity freezer





Voltage: 220V/50HZ/1PH
Power: 2.4KW
Capacity(Liters/Hr): 25
Dimension(mm) (NET): 550/650/960
Dimension(mm) (PACKING): 650/780/1160
N. W. (Kg): 150

G. W. (Kg): 170



Packing: Carton With Pallet
Loaded In 20 Container: 54units
Loaded In 40 Container: 108units



Specifications:
Freezing Cylinder: 2x1.7Liter
Mix Hopper: 2x12.5Liter
Separate hopper refrigeration(S. H. R. )maintains mix below 5centigrade temperature
Refrigeration System
Main refrigeration:
One compressors: 3650BTU/hr. R404a
Separate hopper refrigeration(S. H. R)
One compressor: 420BTU/hr. R134a(BTU may vary depending on compressor used)
Beater Motor: One, 2.0HP
Capacity: 190 Cones/Hour(100g/Cone)(Capacity varies depending on condition of mix and environment)



Options:
Manufactured upon request, not available in stock
Power supply 220V/60HZ/1PH. Or 220V/60HZ/3PH
Local specific plugs of power supply wire
Special Packing Dimension
Ice cream cone dispenser
Cover of dispenser door
