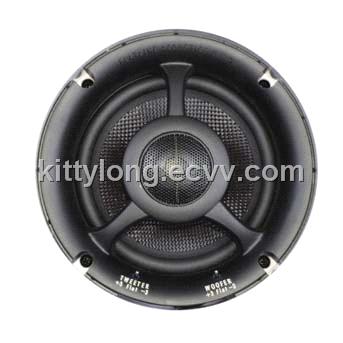

5.25-inch In-Ceiling Speaker

Detailed Product Description

Tweeter:
- 1-inch titanium dome
- Ferro-fluid cooled
- 30 degree swivel
- Pivot and neodymium magnet
Woofer: 5.25-inch
3-inch woven kevlar cone
Dual 1-inch voice coil
Magnet: 18 oz
Bumped back plate
Vented pole piece
Gold plated terminal posts will accept 14AWG wire
Frequency response: 40Hz to 22KHz
Sensitivity: 88dB
Power amplifier: 10 to 100W per channel
Impedance: 4/8Ω selectable on PCB
Cutout size: 6.62-inch
Depth: 3.74-inch
X-over: FR4 PCB board with 18dB per octave crossover for tweeters and woofer sections
Polyimide switch
Auto protect reset switch
Over power protection for both tweeters
±3dB attenuation switches on woofer and tweeter
16AWG wire connection to woofer section
Paint masks and cut out template included
Carton dimensions (single pack): (H) 10.2 x (W) 9.6 x (L) 14.7-inch
Weight (single pack): 11lbs
