Global Brands Development Limited

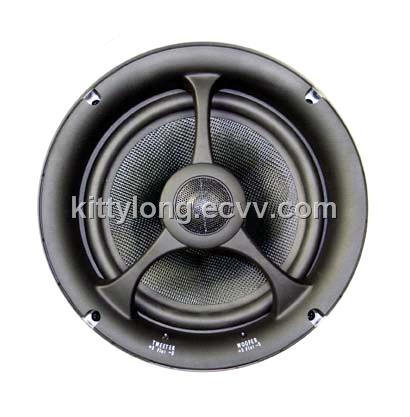

6.5'' In-Ceiling Speaker

Detailed Product Description

  • Tweeter:
    • 1-inch titanium dome
    • Ferro-fluid cooled
    • 30 degree swivel
    • Pivot and neodymium magnet
  • Woofer: 6.5-inch
  • 3-inch woven kevlar cone
  • 1-inch voice coil
  • Magnet: 22 oz
  • Bumped back plate
  • Vented pole piece
  • Gold plated terminal posts will accept 14AWG wire
  • Frequency response: 45Hz to 22KHz
  • Sensitivity: 88dB
  • Power amplifier: 10 to 125W per channel
  • Impedance: 4/8Ω selectable on PCB
  • Cutout size: 7.95-inch
  • Depth: 4.09-inch
  • X-over: FR4 PCB board with 18dB per octave crossover for tweeters and woofer sections
  • Polyimide switch
  • Auto protect reset switch
  • Over power protection for both tweeters
  • ±3dB attenuation switches on woofer and tweeter
  • 16AWG wire connection to woofer section
  • Paint masks and cut out template included
  • Carton dimensions (single pack): (H) 10.7 x (W) 10.4 x (L) 15-inch
  • Weight (single pack): 12lbs
