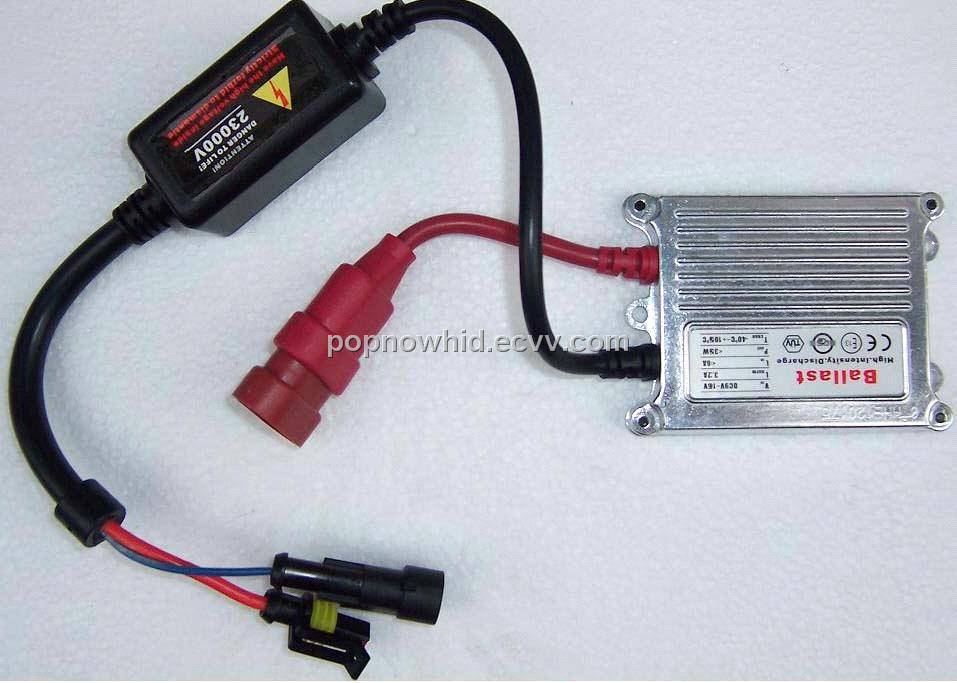

Popnow Hid Slim Ballast

Popnow Hid Slim Ballast description:

Input Voltage Range:DC9V～16V
Starting Voltage:DC12.8V
Input Current:3.2A
Max. Inrush Current:15A
Output Power:32W-38W
Output voltage:AC85V±15V
Output Frequency:260Hz～280Hz
Efficiency:≥84%
using lamp:35W HID LAMP
Ignition pulse:Typical peak Voltage 23kV    Typ. 1s
Cooling method:Natural cooling
Input Protections:
 Under voltage protection at 6V±1V
 Over voltage protection at 27.5V±1V
 Input connection-reverse protection
Output Protections:
 Short circuit protection between two outputs
 Open circuit protection between two outputs
