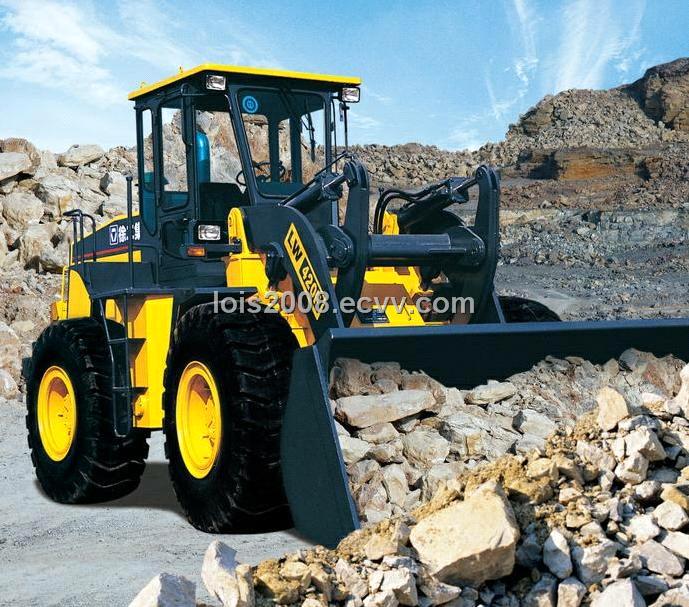

XCMG wheel loader LW420F

Detailed Product Description

Standard:

Rated load:4000kg

Rated Bucket capacity: 2.2 m3

Dimensions: L*W*H: 6950*2750*3162mm

Wheel base: 2660 mm

Tread: 2060mm

Ground clearance: 455 mm

Dumping clearance at full lift and 45 degree discharge: 2935 mm

Dumping reach at full lift and 45 degree discharge: 1036 mm

Breakout force: 110kN

Operating weight: 13t

total cycling time 10.5s

Max. drawing force: 120kN

Articulation angle: 35 degree more or less

Min. turning radius:

At the center of outside tire:5415mm

At the outside of bucket:6235mm

Grade ability: 28 degree

Travelling speeds: 1st (forward/reverse) 11/15 km/h

2st (forward) 35 km/h

Engine

Make: Shanghai Diesel

Model:6135K-13c

Rated power @2000rpm:128kW

Max. torque: 686/1300-1500 N.m/r/min

Tire size: 20.5-25-16PR(L3)

Log fork:

Rated load: 4000kg

Dumping clearance: 3073mm

Dumping reach: 1420 mm

Min. log diameter and Max. Fork opening: 320*1744mm

Side-dump:

Rated load: 3000kg

Dumping clearance frontal/side: 2850/3760 mm

Dumping reach frontal/side: 1065/90 mm

Other Price Terms:

CIF,CFR
