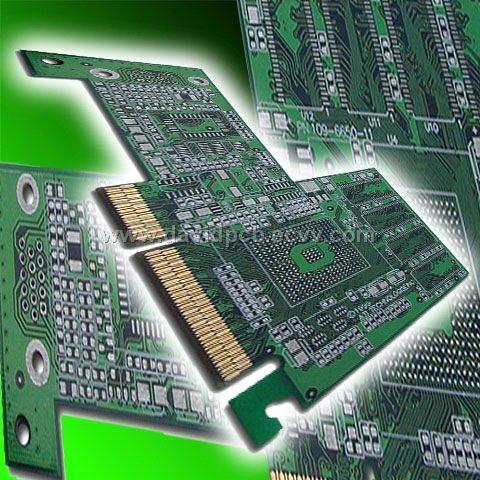

Multilayer PCB and Heavy copper PCB

Detailed Product Description

NO.	Item	Parameter
1	Number of Layers	1-30Layers
2	Finished Boards Thickness	0.2mm-6.0mm
3	Max.Panel size	610mm X 1200mm
4	Available Laminates Material	FR1,FR2,CEM1,CME3,FR-4, High TG FR-4,PTFE,Aluminum Base, Rogers,Tachnic, Halogen Free,high-frequency,Leadfree and so on.
5	Finished board thickness tolerance	T>=0.8mm,Tolerance:+/-8% T<0.8mm,Tolerance:+/-10%
6	Min Line Width/Spacing	3mil/3mil(0.075mm/0.075mm)
7	Drilling Hole (Mechanical)	0.15mm--6.35mm
8	Finish Hole (Mechanical)	0.10mm--6.30mm
9	Diameter Tolerance (Mechanical)	0.05mm
10	Registration (Mechanical)	0.075mm

11	Out Layer Copper Thickness	35um--420um
12	Inner Layer Copper Thickness	17um--420um
13	Aspect Ratio	12:1
14	SMT Mini. Solder Mask Width	0.08mm
15	Mini. Solder Mask Clearance	0.05mm
16	Plug Hole Diameter	0.25mm--0.60mm
17	Impedance Control Tolerance	+/-5%
18	Surface Finish	HASL,HASL Leadfree,Immerstion ENIG,Chem. Tin,Flash Gold,OSP,Gold finger,Peelable,Immerision Silver,
19	Insulation Layer Thickness	0.075mm--5.00mm
20	Special technology	Blind hole PCB,Buried via PCB, Impedance control PCB,Heavy Cu PCB (12oz)

More than 15 years experience of manufacturing PCB

Provide you not only the prototype but PCB with big quantity at competitive prices

Lead time for urgent prototype: 2 layers- in ONE day, multilayers- in 4 days.

We are sincerely hope that you can give me a chance to prepare a quotation for you, then you can know how we can help you to be more competitive in
Electronics Market. And welcome to your prototype/sample orders for testing our quality.

FOB Price:	USD0.5-4.5HK
Other Price Terms:	FCA HK,DDU,DDP or CIF
