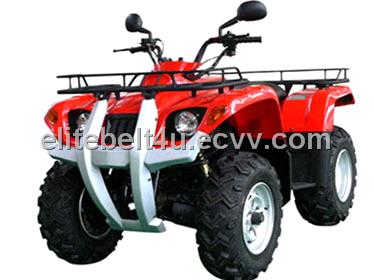

ATV

Detailed Product Description

CATV03

Engine : 4x4 400cc single-cylinder, oil-cooled, 4-stroke, 4WD

Dimensions (mm): 2,100 x 1,125 x 1,175

Displacement (ml): 387.4

Power (kW/r/min): 16kW/6,500r/min

Maximum torque (N.m/r/min): 26N.m/5,000r/min

Starting: electric/Manual

Max. speed (km/h): over 75

Transmission: axle

Brake type (front/rear): disc/drum

Tire size (front / rear): F: 25 x 8-12; R: 25 x 10-12

Ignition mode: CDI

Wheelbase (mm): 1,240

Fuel tank capacity (L): 6.6

Battery: 12V 20Ah

Net weight (kg): 135

Max. loading (kg): 220
