Main performance and structural characteristics:

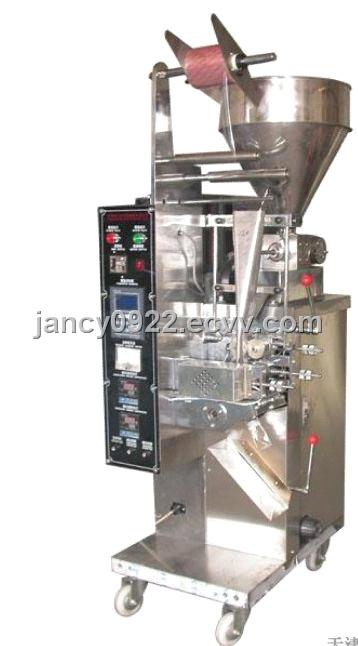

Automatic packaging machine is the development of new company-wide computer-controlled manufacturing pouch, Vertical; trilateral, quadrilateral Seal; flat bag, pillow-shaped bags, intermittent packing machine. Measurement methods can be automatically applicable to a better flow of the liquid pouch packaging materials.
The machine features:
1. Computer controlled, simple operation, easy to maintain stable performance, reliable quality.
2. Packaging speed stepless speed regulation.
3. Use of specific control technology bags, bags without long-adjustable. Bag length accurate, and convenient adjustment.
4. Intelligent temperature control device, can control temperature heat sealing temperature to ensure that the sealing quality.
5. Replacement of parts. Closure can be realized trilateral, quadrilateral letters, flat bag, pillow-bag production.
6. Photoelectric unique positioning technology to ensure that the subject colored logo bag integrity.
7. Packaging within the framework of rated capacity in the stepless.
8. Automatic batch printing products, and easy to tear mouth, easy to use. （this is optional device according to customer requirement.）
9. Generous local pleasing in appearance, stainless-steel structure, in line with food and medicine packaging health requirements for the food, pharmaceutical and chemical industries.
Packing material: paper / PE, cellophane / polyethylene, BOPP film, etc. can be heatsealing composite packaging material.
The aircraft used volumetric liquid filler system for miso soup, sauce, gel quality, grease, and Zhigao shrub such as bags, etc., applicable to the food, cosmetics, pharmaceutical and chemical industries. The viscosity of various products or even soft wide-complex products all can be filling. Liquid packaging machine is fast, accurate, practical and economic advantages.
Product parameters:
|
Model |
DXDJ-788L |
|
Power |
220V50Hz |
|
Power |
1.5KW |
|
Gas source |
0.6MPa |
|
Bag Dimensions |
L:80-280mm W:80-180mm |
|
Packaging speed |
15-60bag/m |
|
Packaging dose (filling accuracy |
10-500ml(±1.20%)
Remarks: And the arrange is 10-100ml 100-250ml 250-500ml .if you change the arrange you need add USD 1480.00 for change full set pump device. |
|
Dimension |
800L X 1100W X 1900H mm |
|
The device weighs |
300kgs |
