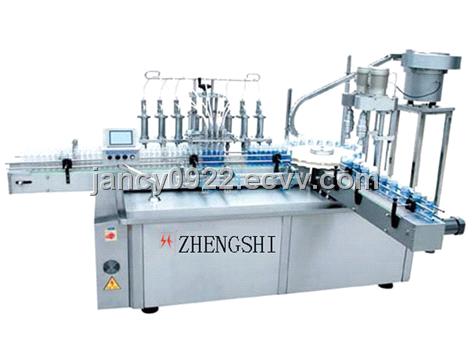

Automatic plunger-8/2rotary liquid filling head (bar) to build integration, our company is to adapt to market demand, the introduction of foreign advanced technology development. It used 361L stainless steel piston metering pumps implementation of the filling and top-automatic, automatic screw-cap, electrical machines into one, economical and practical, covers an area of small, widely used in pharmaceutical, pesticide, chemical, food, cosmetics Industries such as liquid packaging, in full compliance with GMP norms.request.
The main technical parameters
Apply to bottle specifications :20-1000ml Power consumption: less than or equal to 2.2Kw
Plunger-pump head measurement: 8 head Required compressed air pressure :0.4-0 .6 Mpa
Lid screw head : 2 head Speed Control: Frequency timing
Installed capacity of error: ≤ 1%
The amount of equipment standards for stand-alone noise: ≤ 50Db
The passing rate of screw-cap: ≥ 99% weight: about 1000Kg
Power supply; 380V50Hz size: 2200 * 1200 * 1500 (mm)
Production capacity :3600-5000 bottles / hour
Features
Piston metering pumps implementation of the filling, all kinds of practical viscosity of liquid, high-precision; the structure of the pump used to demolish the structure of quick-pick easy cleaning and disinfection.
Plunger-type metering pump piston ring material industry and the different components of liquid silicone rubber used it, tetrafluoroethylene or other material, the use of the special circumstances of ceramic material.
PLC control system, Frequency, a high degree of automation.
Installed capacity to facilitate the adjustment can be adjusted all the time metering pumps to fill the volume, but also for various metering pumps for a slight adjustment; simple, quick adjustment,
Filling needle design of the anti-drip device, the filling into the submarine base at filling, slow rise, to prevent foaming.
Applicable to different specifications of the whole bottle, to facilitate the adjustment can be completed in the short-term.
Machine designed according to GMP
